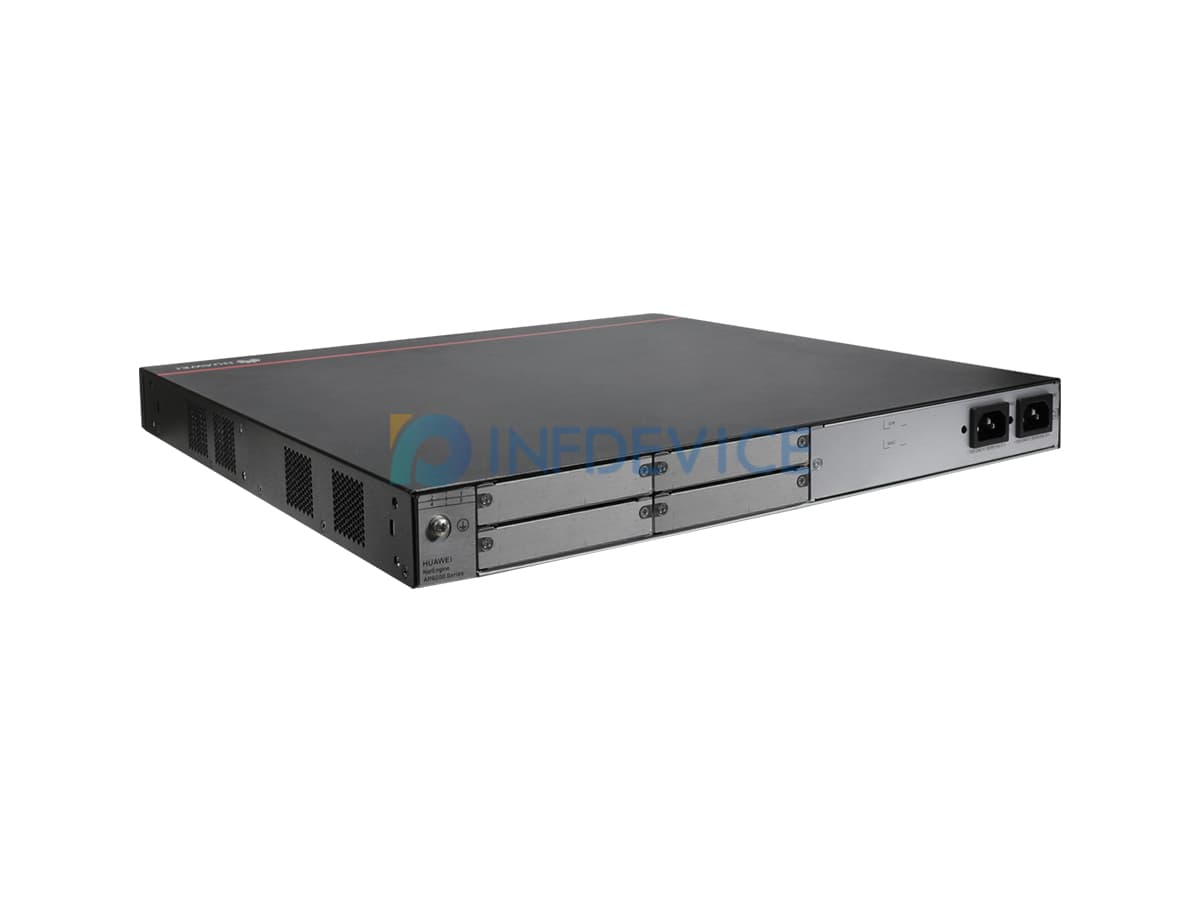

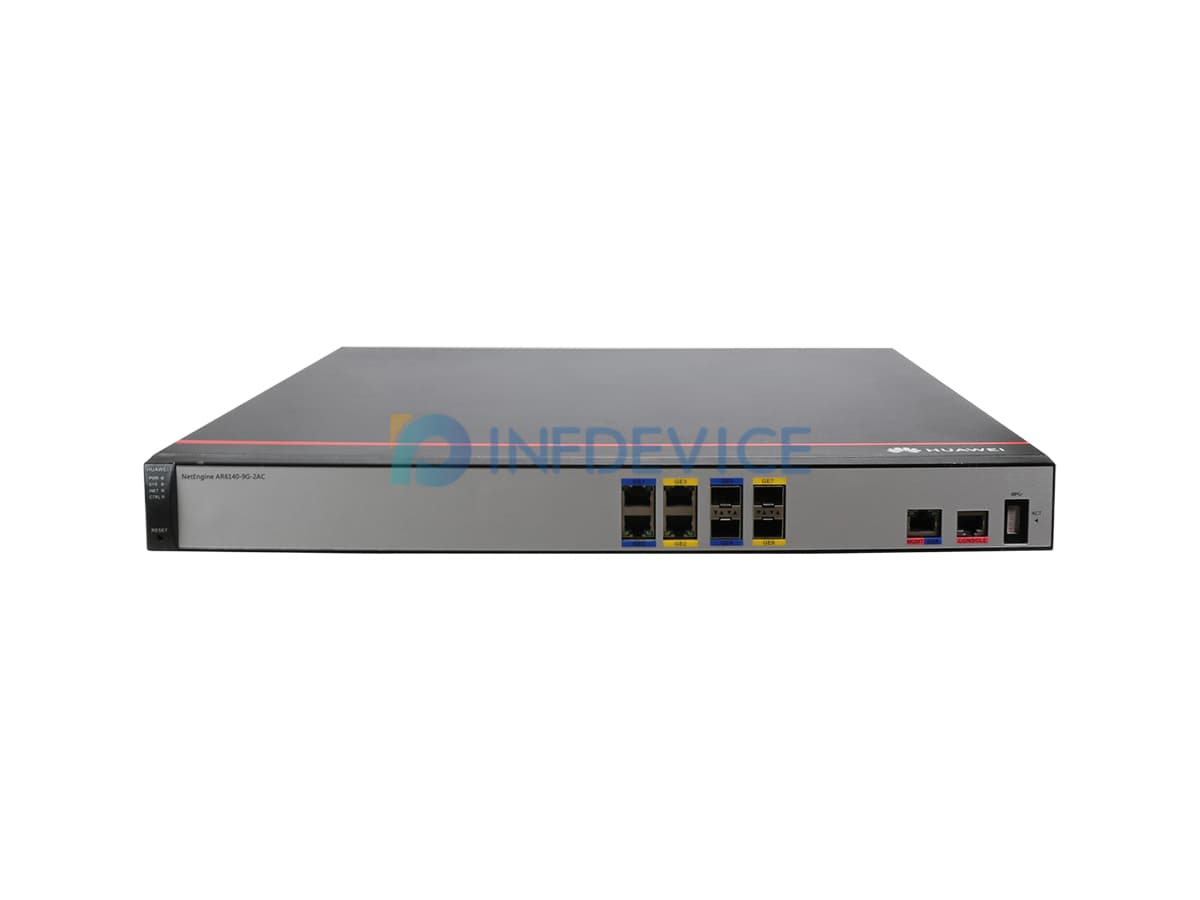

AR6140-9G-2AC

AR6140-9G-2AC Specification

System Parameters

Processor

4-Core

Forwarding Performance (LAN - > WAN + WAN - > LAN,NAT + ACL + QoS,IMIX)

2 Gbps

IPsec performance (IMIX)

2 Gbps

Fixed WAN ports

2 x GE RJ45 + 2 x GE SFP

Fixed LAN ports

2 x GE SFP + 3 x GE RJ45 (can be configured as WAN)

SIC slots

4

WSIC slots

0 (default)/2 (maximum)

XSIC slots

\

USB port

1 x USB3.0 (compatible with USB 2.0)

Auxiliary or console port

1 x RJ45 console port

Memory

2 GB

Flash memory

1 GB

Hot swapping

Supported

Dimensions and Weight

Router dimensions,With no mounting bracket installed (H x W x D)

44.5 mm x 442 mm x 420 mm

Router dimensions,With mounting bracket installed (H x W x D)

44.5 mm x 482.6 mm x 572.5 mm

Packaging dimensions (H x W x D)

175 mm x 550 mm x 710 mm

Rack

IEC

Occupied rack space

1U

Power Specifications, Power Consumption, and Heat Dissipation

Rated input voltage range (AC)

100 V to 240 V

Rated input frequency (AC)

50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V

Maximum input current (AC)

3 A

Maximum output power (AC)

150W

Power supply redundancy

Support

Typical power consumption

18W

Maximum power consumption

32W

Fan module

Built-in unpluggable fan modules

Airflow

Left to right

Noise level

54 dB

Environment Parameters

Operating temperature

0ºC to 45ºC

Operating humidity

5% to 95% (non-condensing)

Operating altitude

< 5000 m (16404.2 ft.)

Storage temperature

–40ºC to +70ºC

Storage altitude

< 5000 m (16404.2 ft.)

Software Features and Protocols

Basic function

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP

WLAN (AC)

AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user

management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management)

IPv4 unicast routing

Routing policies, static routes, RIP, OSPF, IS-IS, BGP

IPv6 unicast routing

Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+

Basic IPv6 function

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP

Multicast

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),

hierarchical QoS, Smart Application Control (SAC)

Security

ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering

Management and maintenance

Upgrade management, device management, web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA

Safety and Regulatory Standards

EMC standards compliance

CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

Environmental standards compliance

RoHS

REACH

WEEE

Safety standards compliance

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
