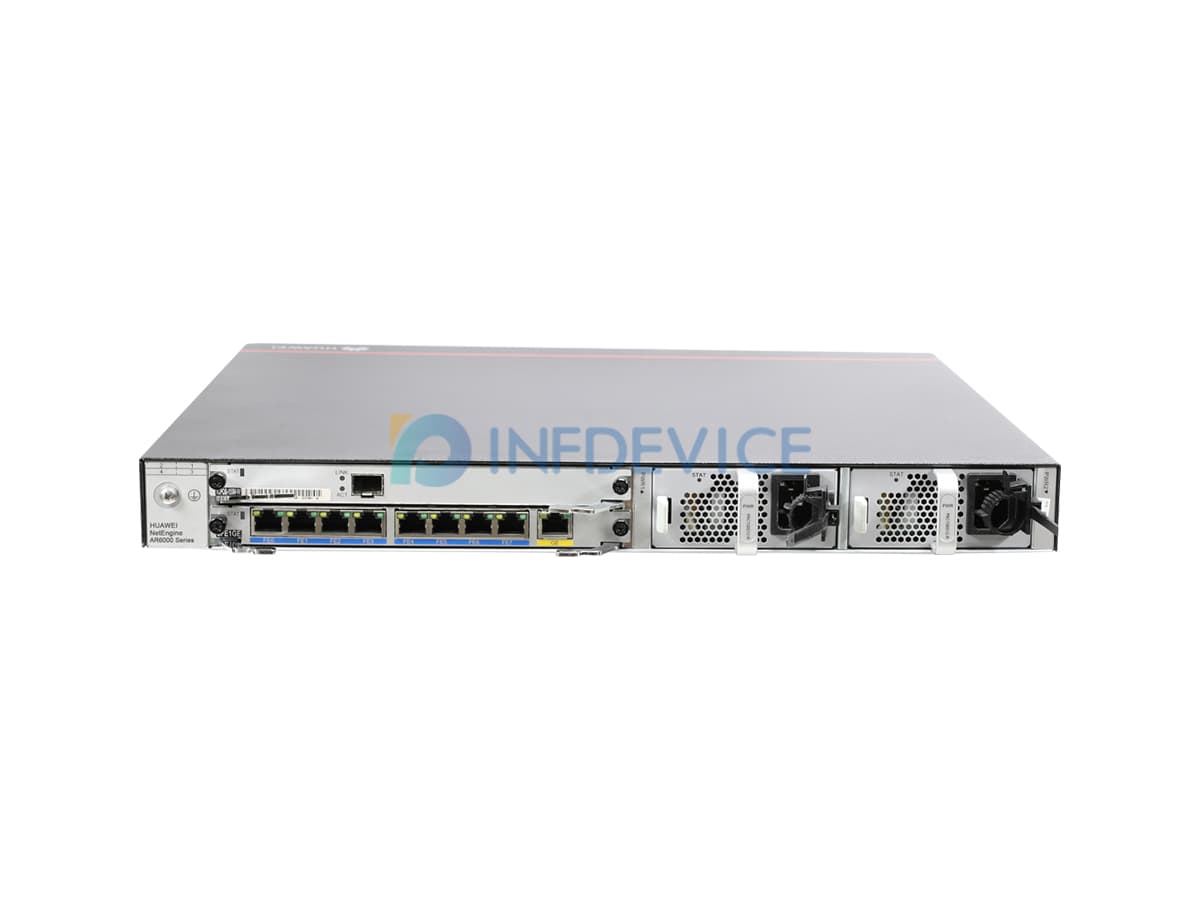

AR6140-16G4XG

AR6140-16G4XG Specification

System Parameters

Processor

16-core, 1.85 GHz

Memory

4 GB

Flash

1 GB

Micro SD card (default sd1)

Not supported

Hard disk

Not supported

Dimensions (H x W x D)

• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height

• With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height

Power specifications

Rated input voltage range (AC)

100 V to 240 V, 50 Hz/60 Hz

Maximum input voltage range (AC)

90 V to 264 V, 47 Hz to 63 Hz

Maximum input current

3 A

Maximum output power

150 W

RPS power supply

Not supported

PoE power supply

Not supported

Power consumption (empty chassis)

Typical power consumption

60 W

Maximum power consumption

96.8 W

Heat dissipation

Fans

Built-in, unpluggable fans

Airflow (facing the front panel)

Left to right

Interface density

Management interface

1 (RJ45)

CON/AUX interfaces

1 (RJ45)

USB 3.0 interface

1

Service interfaces (standard configuration)

LAN interfaces: twelve GE electrical interfaces

WAN interfaces: four GE electrical interfaces and four 10GE optical interfaces

Extended slots

4 x SIC

2 x WSIC

Environment parameters

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, non-condensing

Operating altitude

< 5000 m (16404.2 ft.)

Software Features and Protocols

Basic function

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP

WLAN (AC)

AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user

management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management)

IPv4 unicast routing

Routing policies, static routes, RIP, OSPF, IS-IS, BGP

IPv6 unicast routing

Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+

Basic IPv6 function

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6

IPv6 tunneling

Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP

Multicast

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),

hierarchical QoS, Smart Application Control (SAC)

Security

ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering

Management and maintenance

Upgrade management, device management, web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA

Safety and Regulatory Standards

EMC standards compliance

CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

Environmental standards compliance

RoHS

REACH

WEEE

Safety standards compliance

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
