Cisco Catalyst 9100 Access Points

About the Cisco Catalyst 9100 Access Points

The Cisco Catalyst 9100 family is the Wi-Fi 6 generation of Cisco access points — the
indoor and outdoor units that replaced the 802.11ac wave-2 range. Four indoor series and one
outdoor series are grouped on this page, and the reason they belong together is that they
share the same management model: they join a Catalyst 9800 controller or run in embedded
controller mode, and they all support the OpenRoaming and Wi-Fi 6 feature set that the
previous generation does not.

The series differ mainly in performance class and physical form:

• C9115AX — the entry indoor Wi-Fi 6 access point. The right choice for ordinary
  office coverage where the client density is modest.


• C9120AX — the mainstream indoor access point, one step up in radio capability from
  the 9115, and the one most deployments standardise on.


• C9130AX — the high-density indoor access point, for auditoriums, lecture theatres,
  open-plan floors and anywhere a large number of clients associate with one AP.

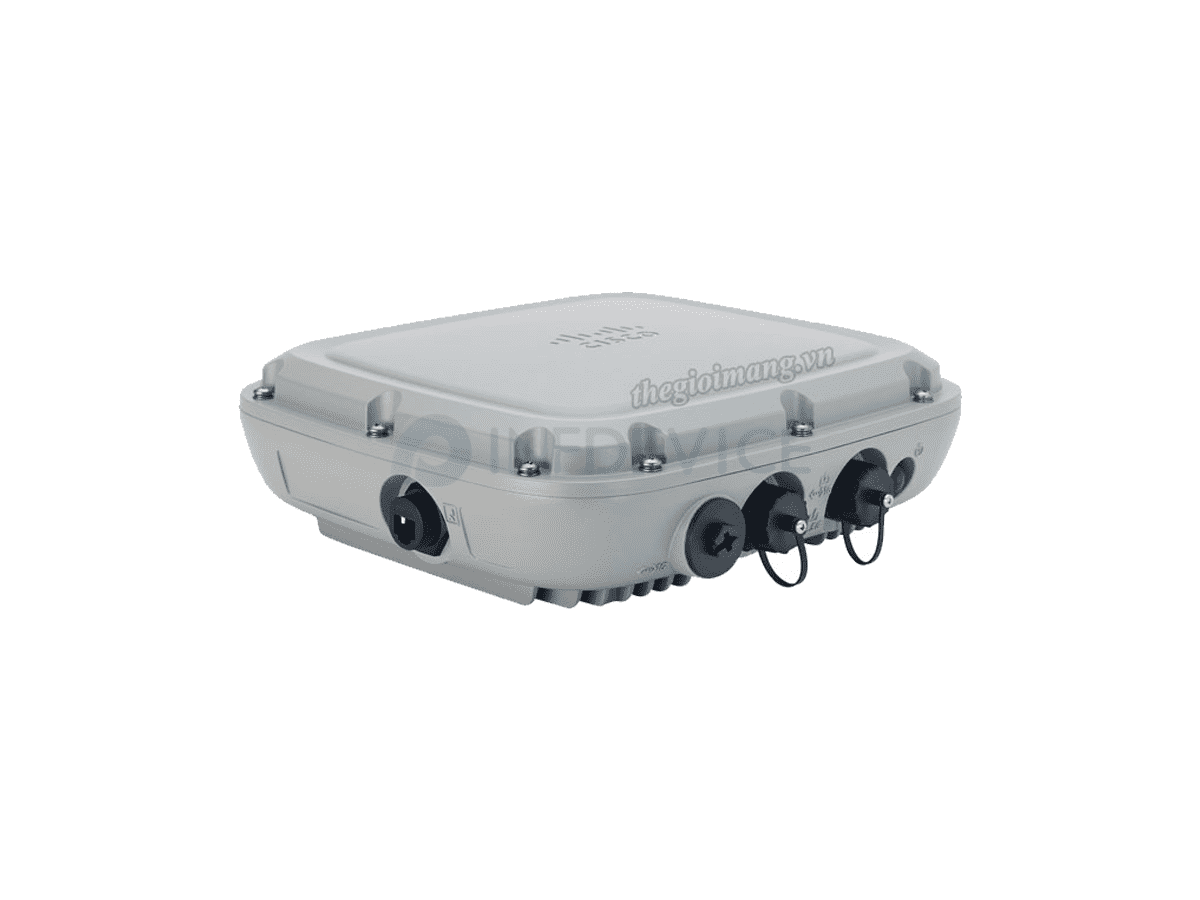

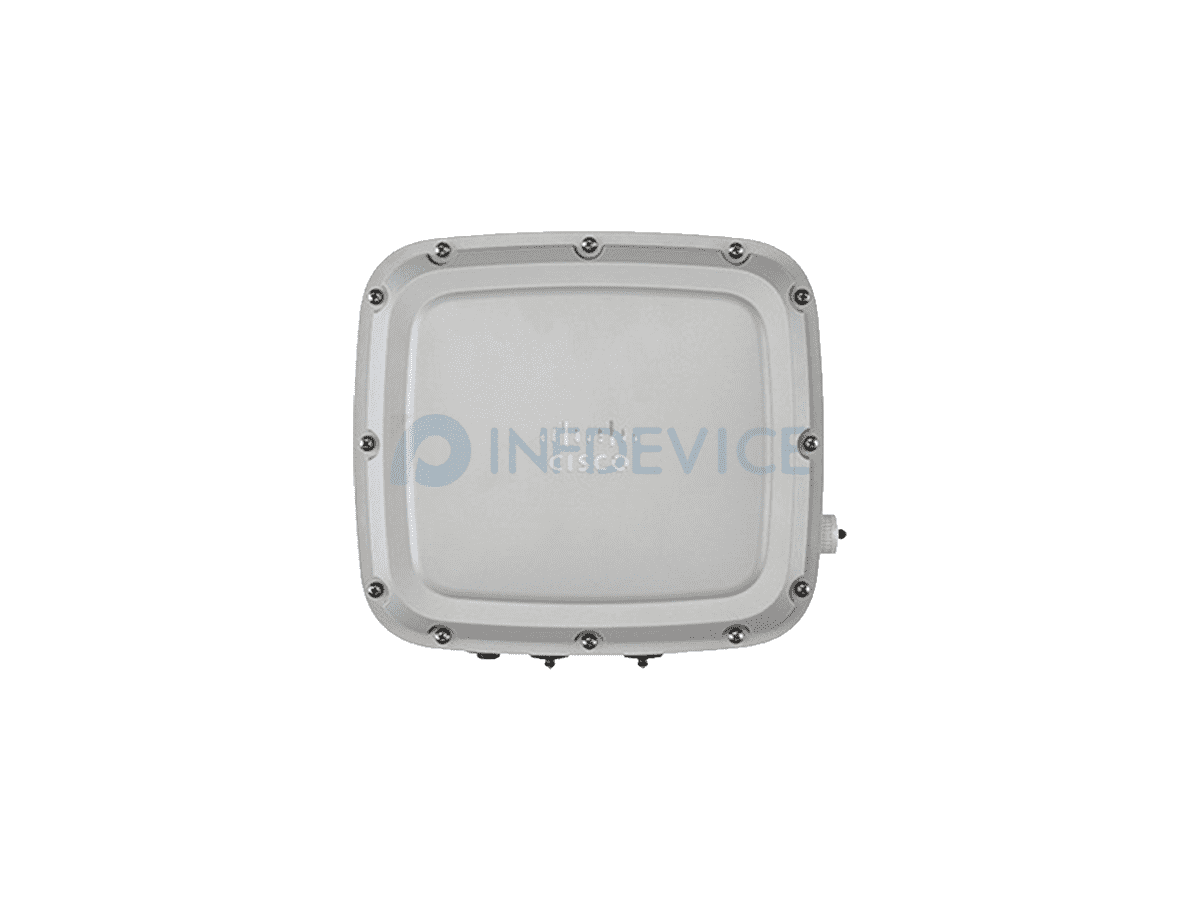

• C9124AX — the outdoor access point, IP67 rated, for building exteriors,
  campus grounds, warehouses and yard coverage.


• CW9166 — the Wi-Fi 6E series. These add the 6 GHz band on top of 2.4 and
  5 GHz — a third radio spectrum that is currently clear of legacy clients, which is what
  makes it attractive in dense environments.

Reading a part number

A model such as C9130AXE-H carries three pieces of information:

• C9130AX — the series and performance class.


• E or I — the antenna arrangement. I denotes internal antennas
  (the tidy option for an office ceiling), E denotes external antennas (the
  flexible option where coverage has to be shaped, or where the AP sits in a metal
  ceiling or an enclosure). D denotes a directional model.


• -H or -ROW — the regulatory domain. This is the regional certification
  that determines which radio bands and channels the AP is permitted to use where it will
  be installed. -H and -ROW cover different sets of countries, and the
  correct one depends on the destination, not on the site's preference.

How to Choose a Catalyst 9100 Access Point

1. Indoor or outdoor

The first decision is physical. The C9115 / C9120 / C9130 / CW9166 models are indoor
units — they expect a ceiling or wall mount inside a conditioned space. The C9124AX is
the outdoor unit, IP67 rated, designed for weather, temperature extremes and moisture. An
indoor AP mounted outside will fail; an outdoor AP mounted inside is a waste of money. There is
no overlap between the two, so decide this before comparing anything else.

2. Pick the performance class for the density, not the floor area

It is tempting to size an AP by the square metres it must cover, but what actually
determines the series is how many clients associate with it and how much airtime they
demand:

• C9115 — individual offices, small meeting rooms, low-density areas.


• C9120 — standard office floors and classrooms. The default choice for most sites.


• C9130 — open-plan floors, auditoriums, lecture theatres and anywhere dozens of
  devices gather in one coverage cell.

Coverage area can be adjusted with antennas and transmit power; client capacity cannot. If
in doubt, the cost of stepping up one class is small against the cost of an unusable deployment
in a busy room.

3. Internal, external or directional antennas

• Internal (I) — nothing to install, nothing to damage, and the cleanest appearance.
  Correct for a normal office ceiling.


• External (E) — the antenna is separate, which lets you point coverage in a
  particular direction, use a higher-gain antenna for a long narrow space, or place the AP
  inside a metal enclosure with the antennas outside it.


• Directional (D) — for deliberately shaped coverage, such as down a corridor or
  across a yard.

The E and I variants of the same series are otherwise the same access point,
which is why you will see both listed at close prices.

4. Wi-Fi 6 or Wi-Fi 6E?

The CW9166 series adds the 6 GHz band. That matters in one specific situation:
a dense environment where the 2.4 and 5 GHz bands are congested and modern clients are being
held back by airtime contention. Wi-Fi 6E gives those clients a clear band. In a site with
modest density, or where the client devices are not 6 GHz capable, the standard Wi-Fi 6 series
delivers the same throughput per client for less money. Buy 6E for density, not for
future-proofing alone.

5. Confirm the regulatory domain

The trailing -H or -ROW code is a regional certification, and it is the one
detail that cannot be corrected after purchase. An access point certified for one region will
not transmit on the channels permitted in another, and the mismatch is not a configuration
issue. Tell us the country of installation when you enquire and we will confirm the right
variant — this is worth checking even when you are replacing a unit like for like, because the
domain codes do not always follow the part numbers you may have on file.

Cisco Catalyst 9100 Access Point Model Comparison

C9115AX — entry indoor Wi-Fi 6

C9120AX — mainstream indoor Wi-Fi 6

C9130AX — high-density indoor Wi-Fi 6

C9124AX — outdoor Wi-Fi 6 (IP67)

CW9166 — Wi-Fi 6E (2.4 / 5 / 6 GHz)

Prices are our current selling prices in US dollars, excluding shipping. Click a
model number for the full specification table and availability. Confirm the regulatory domain
against the country of installation before ordering — it cannot be changed afterwards.

Frequently Asked Questions

What is the difference between the -I, -E and -D models?

The antenna arrangement, not the radio. -I models have internal antennas — nothing to
install and the tidiest ceiling appearance. -E models have external antennas, which lets
you shape coverage, use a higher-gain antenna for a long space, or mount the AP inside an
enclosure with the antennas outside. -D is a directional model for deliberately shaped
coverage. An -E and an -I of the same series perform the same; they differ in how you point
them.

Which series should I choose for a standard office floor?

The C9120AX. It is the mainstream indoor model and the one most deployments
standardise on. Step down to the C9115AX for low-density areas such as individual
offices, and up to the C9130AX for open-plan floors, auditoriums or anywhere a large
number of clients associate with one access point.

Do I need Wi-Fi 6E (the CW9166 series)?

Only where density is the problem. Wi-Fi 6E adds the 6 GHz band, which is currently free of
legacy clients — so in a congested environment, 6 GHz-capable clients get a clear channel
while older devices stay on 2.4/5 GHz. In a site with modest client density, or where the
devices on the network are not 6 GHz capable, the standard Wi-Fi 6 series delivers comparable
per-client throughput for less. Buy 6E for density, not simply for future-proofing.

What does the regulatory domain suffix mean?

It is the regional certification that determines which bands and channels the access point
may use where it is installed. -H and -ROW cover different sets of countries, and
the code cannot be changed after purchase — nor will a unit certified for one region simply
configure its way onto another region's channels. Always confirm against the destination
country before ordering.

Can I use an outdoor model indoors, or vice versa?

Technically the outdoor unit will work indoors, but it is unnecessary cost. The indoor units
will not survive outdoors — the C9124AX is the only series here built for weather,
moisture and temperature extremes, and it carries the IP67 rating that the indoor chassis do
not.

Which controller do these access points work with?

The 9100 series joins a Catalyst 9800 wireless controller, or can run in embedded controller
mode for small deployments without a separate appliance. Confirm the software release on your
controller before deploying a new AP series — the Wi-Fi 6E models in particular need a
controller release that supports the 6 GHz band.

Do you supply mounting brackets, antennas and power injectors?

Yes. Mounting kits, external antennas, PoE injectors and power supplies are all available
alongside the access points. Tell us the series, the site environment and the country of
installation and we will quote the complete bill of materials rather than the AP alone.
