Cisco Industrial Ethernet 2000 Switches

About the Cisco Industrial Ethernet 2000 Series

The Cisco Industrial Ethernet 2000 (IE 2000) Series is a family of compact access switches
purpose-built for industrial environments — factory floors, substations, traffic cabinets,
oil and gas sites and mining operations. Where an office switch expects a clean rack and
conditioned air, the IE 2000 is designed to be mounted on a DIN rail inside a control panel
and to keep forwarding traffic where dust, vibration and wide temperature swings are normal.

The range covers three distinct builds, and the model suffix tells you which one you are
looking at:

• IE 2000 — the standard family in two sub-groups: T models with copper
  10/100 access ports, and TS / TC models that add fiber or combo uplinks for
  longer runs inside a plant.

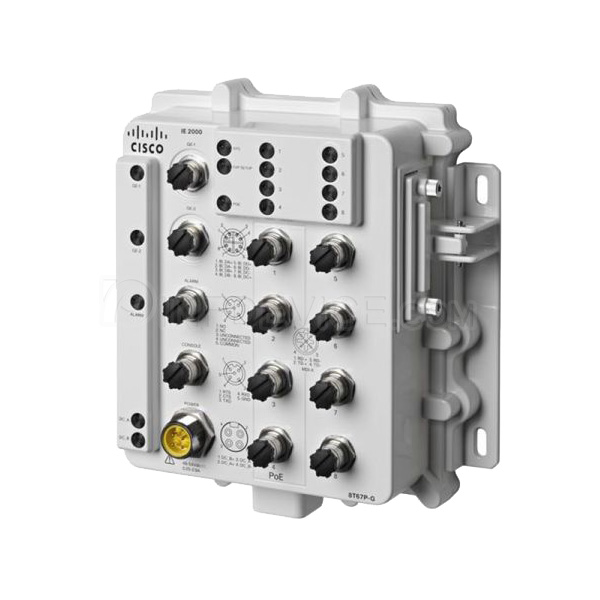

• IE 2000 with IP67 rating — models carrying the T67 designation, sealed to
  IP67 and fitted with M12 connectors instead of RJ45. These mount directly on the
  machine or in washdown areas where a standard connector would not survive.


• IE 2000U — the U prefix marks models that add IEEE 1588 PTP support for
  time-sensitive applications such as substation automation and motion control.

Every IE 2000 ships with two uplink ports, and the software image is indicated by the last
letter of the part number: L for the Lan Lite feature set, B for Lan Base,
and E, X or N for the enhanced Layer 2/3 images used where routing,
resiliency or advanced security is required.

All models listed on this page are in stock and priced below. Click any model
number for full specifications, a data sheet extract and availability.

How to Choose a Cisco IE 2000 Switch

There are 37 IE 2000 variants in the range. Five questions narrow it down quickly.

1. How many ports, and what kind?

The series spans 4, 8, 16 and 24 port chassis. Copper models use 10/100 (FE) access
ports — the IE 2000 is a Fast Ethernet access platform, not a Gigabit one, so plan your
uplinks accordingly. If the field devices are fiber-connected, choose a TS or TC
model, which carries SFP or combo uplink ports alongside the copper access ports.

2. Fast Ethernet or Gigabit uplinks?

Two uplinks are fitted on every model. The suffix G indicates Gigabit uplink
capability — for example IE-2000-8TC-G-L has 8 Fast Ethernet access ports with
Gigabit-capable uplinks, while IE-2000-4T-L is limited to Fast Ethernet throughout.
If the switch aggregates into a Gigabit ring or core, take a G model.

3. Which software image do you need?

This is the single most common source of ordering errors:

• Lan Lite (-L) — entry-level Layer 2. Suitable for simple access
  connectivity with basic VLANs and QoS.


• Lan Base (-B) — the mainstream industrial image. Adds the full Layer 2
  feature set used in converged plant networks.


• Enhanced (-E / -X / -N) — adds advanced resiliency and security
  features. Choose these where the switch participates in a redundant ring or where
  Layer 3 functions are required.

4. Standard connector or IP67?

Models with T67 in the part number are rated IP67 and use M12 circular
connectors. Choose them when the switch is mounted outside an enclosure, on the machine
itself, or in an area that is washed down. For a conventional DIN-rail installation inside
a control cabinet, the standard RJ45 models are the right (and cheaper) choice.

5. Do you need PoE, or time synchronisation?

PoE is only available on selected models — the P in the part number marks them, for
example IE-2000-16PTC-G-E (16 Fast Ethernet copper ports, 4 of them PoE+) and
IE-2000-8T67P-G-E (8 sealed M12 ports, all PoE+). If your design includes cameras,
access points or IP phones on the plant floor, start from the PoE models rather than
adding injectors later.

If the application depends on precise time — substation IEC 61850, motion control or
deterministic Ethernet — select an IE 2000U model, which adds IEEE 1588 PTP.

Cisco IE 2000 Model Comparison

Prices shown are our current selling prices in US dollars, excluding shipping.
Model numbers link to the individual product page with the complete specification table.

Frequently Asked Questions

What is the difference between the IE 2000 and the IE 2000U?

The U models add IEEE 1588 Precision Time Protocol (PTP), which distributes a
synchronised clock across the network. In practice this is what separates a switch used for
general plant connectivity from one used in substation automation, motion control or any
application where devices must act on a common time base. If you do not have that
requirement, a standard IE 2000 does the same job for less money.

Why do some models have an IP67 rating and M12 connectors?

Models with T67 in the part number are sealed to IP67 and terminate in M12 circular
connectors rather than RJ45. That construction lets the switch be mounted on the machine
or out in the process area, exposed to dust, water spray and washdown, without a separate
enclosure. If your switch lives inside a control cabinet, the standard models are the
sensible choice.

What do the Lan Lite, Lan Base and Enhanced images actually give me?

They are software images of increasing capability, indicated by the last letter of the
model number. Lan Lite covers entry-level Layer 2 switching. Lan Base is the
mainstream industrial image with the full Layer 2 feature set. The Enhanced images
(-E, -X, -N) add advanced resiliency and security
features used in ring topologies and Layer 3 designs. Order the image your network design
calls for — it is set at manufacture and cannot simply be upgraded in the field.

Which IE 2000 models support PoE?

PoE is available only on models with a P in the part number — for example
IE-2000-16PTC-G-E, which provides 16 Fast Ethernet copper ports with 4 of them PoE+,
and IE-2000-8T67P-G-E, which provides 8 sealed M12 ports, all PoE+. Every other model
in the range is non-PoE.

Are the uplinks Gigabit?

Only on models carrying the G designation. The IE 2000 is a Fast Ethernet access
platform, so on non-G models both the access ports and the uplinks run at 100 Mbps. Where
the switch feeds into a Gigabit ring or a Gigabit core switch, select a G model.

Can you supply the matching power supply and accessories?

Yes. The IE 2000 range is normally deployed with an industrial DIN-rail power supply and
appropriate M12 or RJ45 cabling. Tell us the model number and the installation environment
and we will quote the complete bill of materials, including spares.
