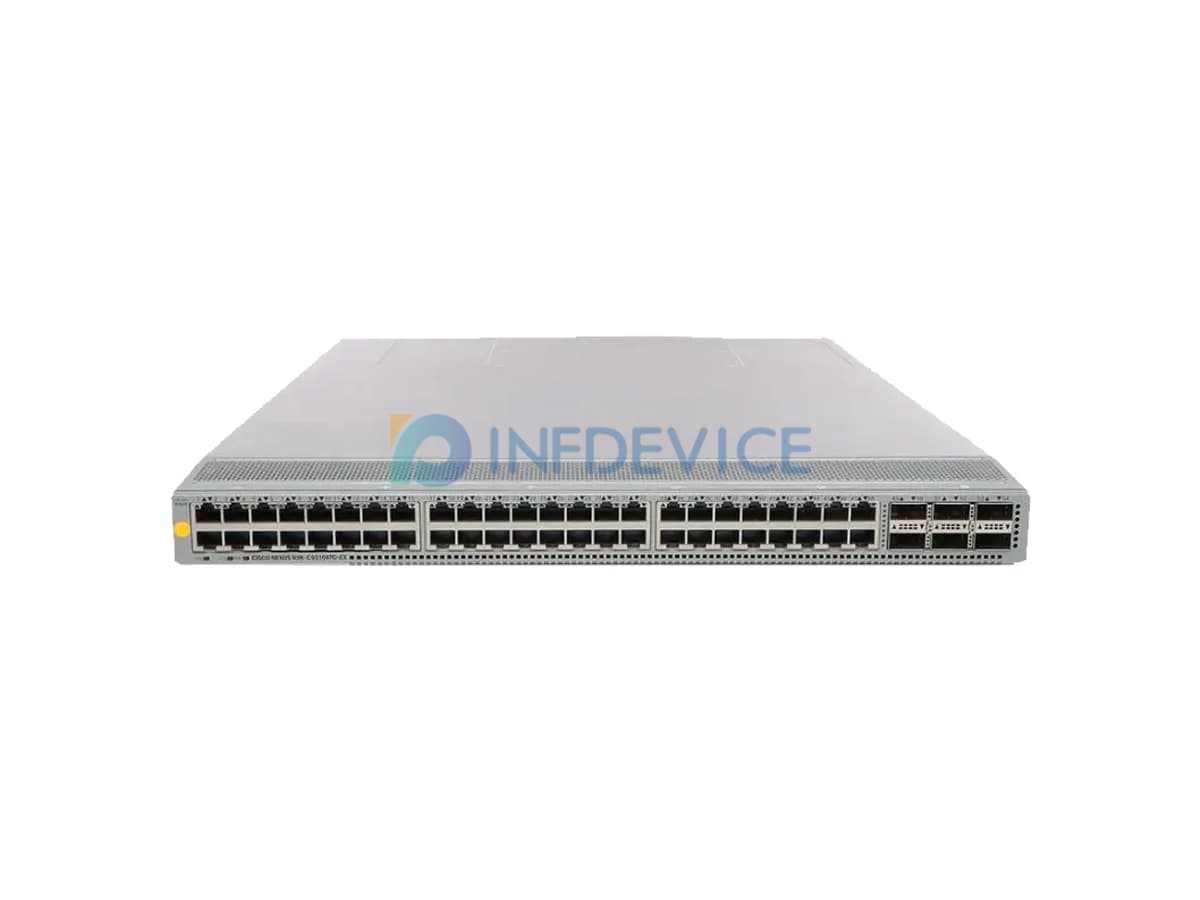

N3K-C36180YC-R

Model:

N3K-C36180YC-R - Cisco Nexus 3000 Series Swtiches

Detail:

Nexus 36180YC-R, 48p 10/25G and 6p QSFP28

List Price:

US$ 46,089.73

Price:

US$20,525.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

QSFP28

Add to Cart

Specification

N3K-C36180YC-R, Cisco Nexus 36180YC-R Switch, 48x10/25G SFP+/6x100G QSFP28 Specification

N3K-C36180YC-R Specifications
Physical	● 1RU fixed-form-factor switch ● 48 SFP ports; each supports native 25, 10, or 1 Gigabit Ethernet mode ● 6 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes ● 2 redundant power supplies ● Management, console, and USB flash-memory ports
Performance	● 1.8-Tbps switching capacity ● Forwarding rate of up to 1.67 bpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports, for packet size bigger than 115B ● Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability*	Number of MAC addresses	750,000
	Number of VLANS	4096
	Number of spanning-tree instances	● Rapid Spanning Tree Protocol (RSTP): 512 ● Multiple Spanning Tree Protocol (MSTP): 64
	Number of ACL entries	● 7000 ingress
	Routing table*	● Maximum number of Longest-Prefix-Match (LPM) routes: 256,000 ● Maximum number of IP host entries: 750,000 ● Maximum number of MAC address entries: 750,000 ● Maximum number of Layer 3 multicast entries: 128,000
	Number of EtherChannels	256 (with vPC)
	Number of ports per EtherChannel	32
	Buffer size	8 GB
	System memory	32 GB
	Boot-flash memory	128 GB
	Frequency	50 to 60 Hz
Power	Power-supply types	AC (forward and reverse airflow) DC (port-side exhaust)^**
	Typical operating power	383 Watts(W)
	Maximum power	771W
	AC Power-Supply Units (PSUs) ● Input voltage ● Frequency Efficiency	● 100 to 240 VAC ● 50 to 60 Hz 89 to 91% at 220V
	● Power-supply efficiency	● 89 to 91% at 220V
	Maximum heat dissipation	2,631MBTU
	● Forward and reverse airflow schemes ◦ Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) ◦ Reverse airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Hot-swappable (must swap within 1 minute)
Cooling	Measured sound power (maximum) ● Fan speed: 40% duty cycle ● Fan speed: 70% duty cycle ● Fan speed: 100% duty cycle
Sound	Dimensions (Height x Width x Depth)	1.72 x 17.3 x 26.85 in. (4.4 x 43.9 x 68.2 cm)
Environment	Weight	27.1 lb (12.3 kg)
	Temperature: Operating	32 to 104°F (0 to 40°C)
	Temperature: Storage	–40 to 158°F (–40 to 70°C)
	Relative humidity: Operating	● 10 to 85% noncondensing ● Up to 5 days at maximum (85%) humidity Recommend American Society of Heating, Refrigeration, and Air-Conditioning Engineers (ASHRAE) data center environment
	Relative humidity: Storage	● 5 to 95% noncondensing
	Altitude: Operating	Up to 13,123 ft.
	Altitude: Non-Operating	Up to 16,000 ft.

Q&A

What accessories are available for the N3K-C36180YC-R?

Accessories include rack mounting kits, power cables, and transceivers compatible with the 10/25G and QSFP28 ports.

How does the N3K-C36180YC-R compare with other switches in the Nexus 3000 Series?

The N3K-C36180YC-R offers a unique blend of port density and speed options with its 48p 10/25G and 6p QSFP28, making it highly adaptable compared to other Nexus 3000 Series switches.

Can the N3K-C36180YC-R handle scalable networking needs?

Yes, the N3K-C36180YC-R is designed for scalability in data centers, supporting high-bandwidth applications and future expansion with its high port density and programmability.
