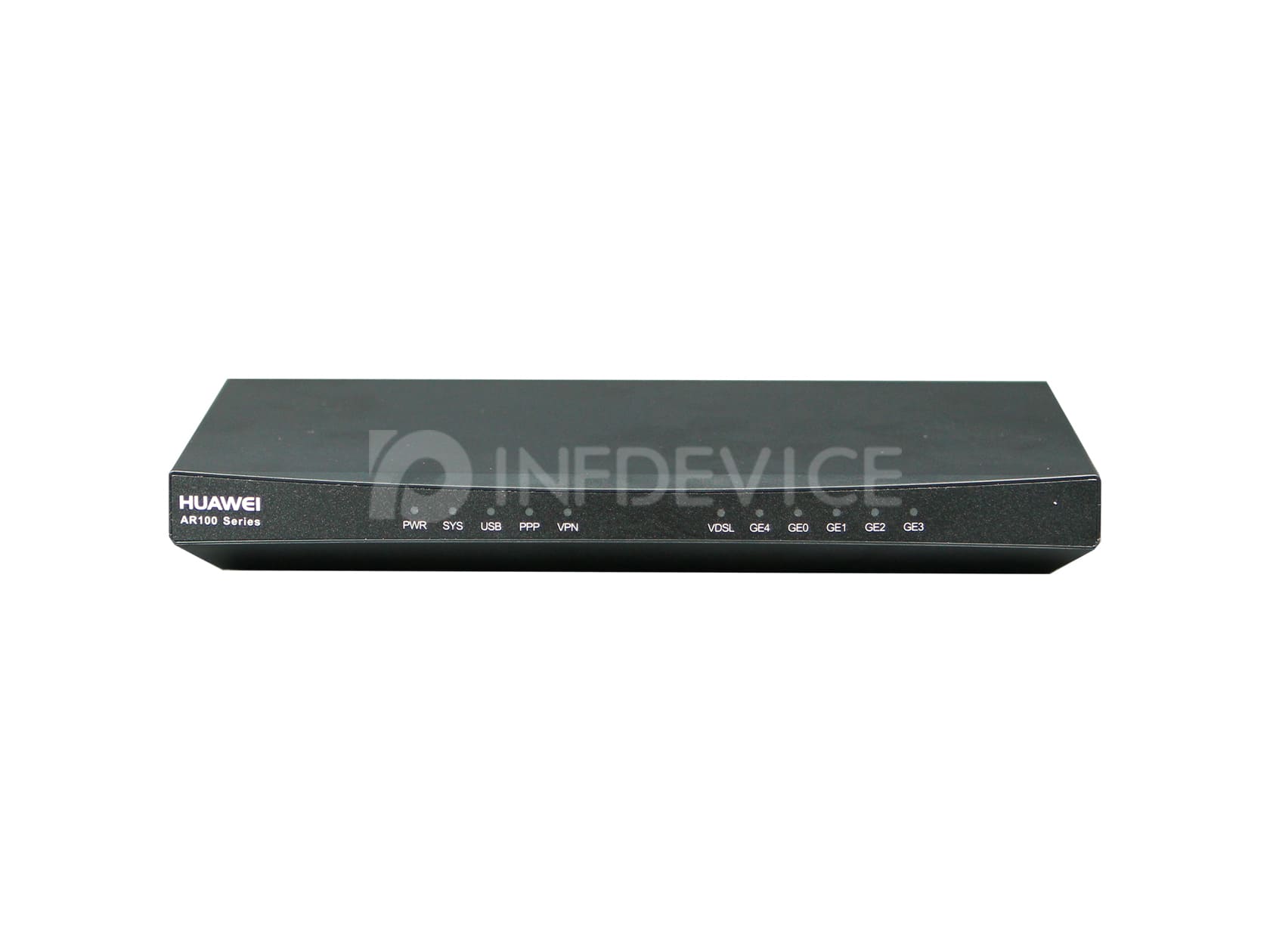

AR109

AR109 Specification

WAN Speed with Services*
(IMIX)

40 Mbit/s

Number of Recommended Users

20

Fixed WAN Ports

1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J), and 1 x GE

Fixed Ethernet Switching Ports

4 x GE

Integrated LTE

none

Wi-Fi

none

USB 2.0 Ports

1

Console Ports

1

Memory Size

256 MB

Flash Memory

256 MB

Maximum Power

24W

Power Supply (AC)

100V to 240V

Frequency

50 Hz/60 Hz

Dimensions (H x W x D)

30 mm x 230 mm x 130 mm (1.18 in. x 9.1 in. x 5.1 in.)

Operating Temperature

0°C to 40°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

ARP , PBR, DNS, DHCP, and NAT

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Routing

Static route, RIP

IPv6 Routing

Static route, RIPng

Multicast

IGMP v1/v2/v3

VPN

IPSec VPN, GRE VPN, and L2TP Client

QoS

Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), and congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ)

Security

ACL, firewall, AAA authentication, ICMP attack defense, URPF, and HTTPS

Management and Maintenance

Upgrade management, device management, web-based GUI, RMON, CWMP, Auto-Config, site deployment using USB disk, and CLI
