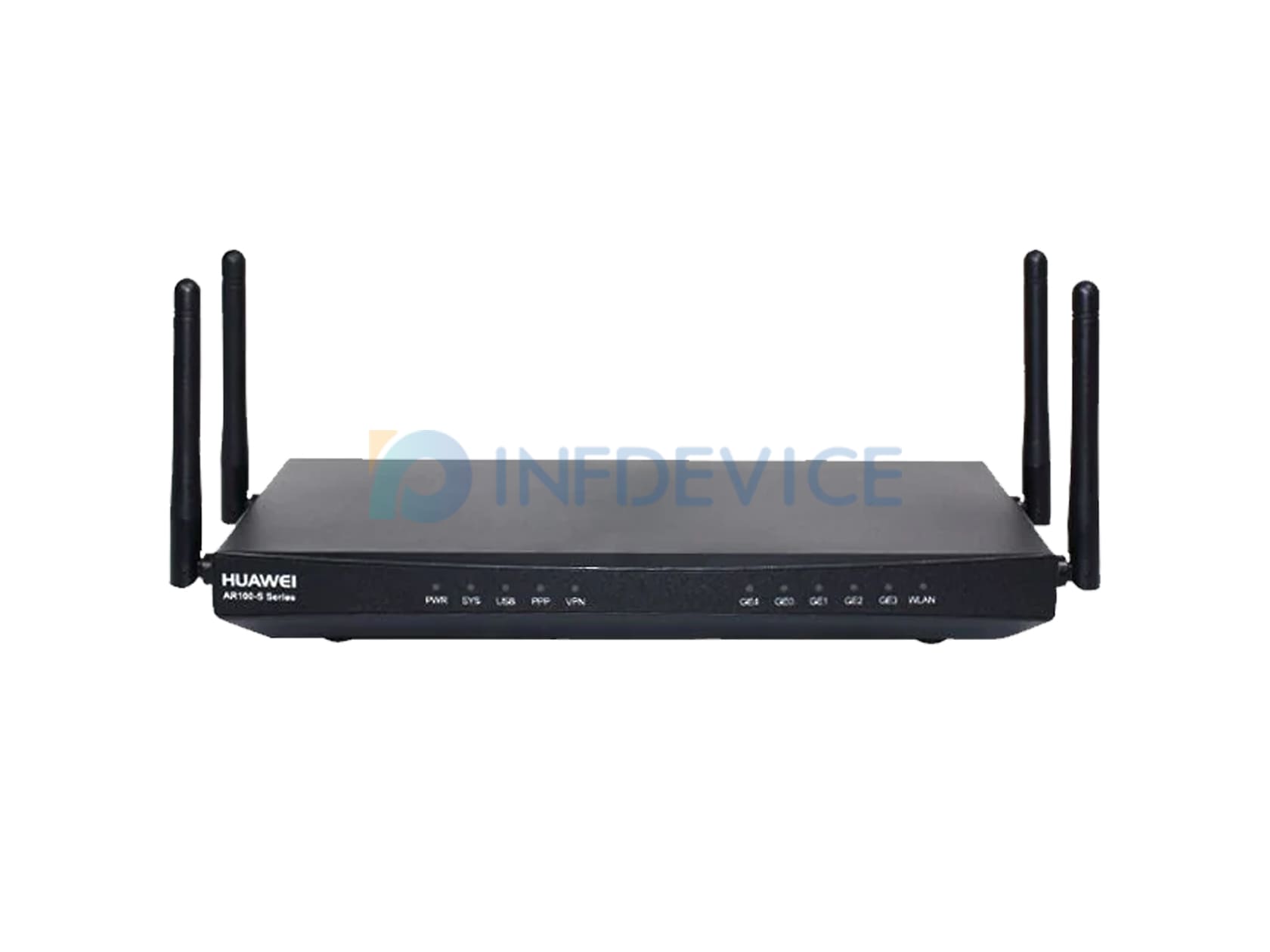

AR101W-S

AR101W-S Specification

WAN Speed with Services*
(IMIX)

200 Kpps

Number of Recommended Users

40 Mbps

Fixed WAN Ports

1*GE

Fixed Ethernet Switching Ports

4*GE

Integrated LTE

None

Wi-Fi

802.11b/g/n, 2.4GHz, 2 x 2 MIMO 802.11ac,
5GHz, 2 x 2MIMO

USB 2.0 Ports

1

Console Ports

1

Memory Size

256MB

Flash Memory

256MB

Maximum Power

24W

Power Supply (AC)

100~240V

Frequency

50/60HZ

Dimensions (H x W x D)

30 x 230 x 130

Operating Temperature

0～40°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

ARP,PBR,NAT,DNS,DHCP

WLAN (AP)

AP management, WLAN QoS, WLAN security, WLAN radio channel management, and WLAN user management

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Routing

Static route, RIP

IPv6 Routing

Static route, RIPng

Multicast

IGMP v1/v2/v3

VPN

IPSec VPN, GRE VPN, and L2TP Client

QoS

Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), and congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ)

Security

ACL, firewall, AAA authentication, ICMP attack defense, URPF, and HTTPS

Management and Maintenance

Upgrade management, device management, web-based GUI, RMON, CWMP, Auto-Config, site deployment using USB disk, and CLI
