N3K-C3548P-10GX

Model:

N3K-C3548P-10GX - Nexus 3000 Series Swtiches

Detail:

Brand new Nexus 3548-X Switch 48 SFP+ ports, Enhanced

List Price:

US$ 28,573.00

Price:

US$11,050.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

SFP+

Add to Cart

Specification

N3K-C3548P-10GX, Cisco Nexus 3548-X Switch, 48xSFP+ ports/Low latency/Enhanced features Specification

N3K-C3548P-10GX Specification

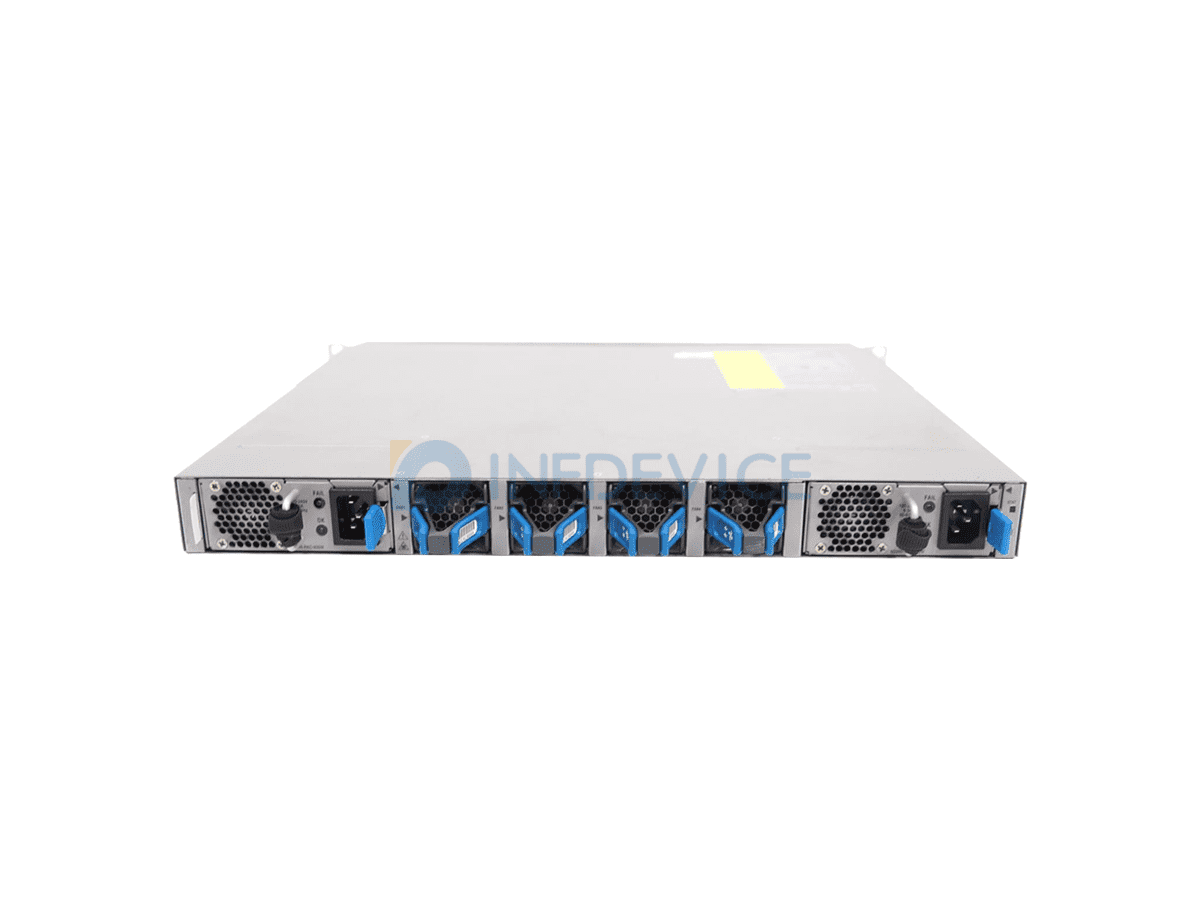

Physical	● 48 fixed SFP+ ports (1 or 10 Gbps) ● Dual redundant hot-swappable power supplies ● Four individual redundant hot-swappable fans ● One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type* ● One 10/100/1000-Mbps management port ● One RS-232 serial console port ● Two USB ports ● Locator LED ● Locator LED button
Performance	● 960-Gbps switching capacity ● Forwarding rate of 720 mpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports ● Configurable MTUs of up to 9216 bytes (jumbo frames)
Typical operating power	● 112W
Maximum power	● 213W
Typical heat dissipation	● 383 BTUs per hr
Maximum heat dissipation	● 727 BTUs per hr
Hardware Specifications
	Mode	Normal Mode	Warp Mode
Hardware tables and scalability	Number of MAC addresses	64,000	8000
	Number of IPv4 unicast routes	24,000	4000
	Number of IPv4 hosts	64,000	8000
	Number of IPv4 multicast routes	8000	8000
	Number of VLANS	4096
	Number of ACL entries	4096
	Number of spanning-tree instances	Rapid Spanning Tree Protocol (RSTP): 512 Multiple Spanning Tree (MST) Protocol: 64
	Number of EtherChannels	24
	Number of ports per EtherChannel	24
	Buffer size	6 MB shared among 16 ports; 18 MB total
	Boot flash memory	2 GB (3524P and 3548P models) 4 GB (3524X and 3548X models)
Power	Number of power supplies	2 (redundant)
	Power supply types	● AC (forward and reversed airflow) ● DC (forward and reversed airflow)
	Input voltage	100 to 240 VAC
	Frequency	50 to 60 Hz
	Power supply efficiency	89 to 91% at 220V
Cooling	Forward and reversed airflow schemes ● Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports) ● Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant)
Environment	Dimensions (height x width x depth)	1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)
	Weight	17.4 lb (7.9 kg)
	Operating temperature	32 to 104° F (0 to 40°C)
	Storage temperature	-40 to 158° F (-40 to 70°C)
	Relative humidity (operating)	● 10 to 85% noncondensing ● Up to 5 days at maximum (85%) humidity ● Recommend ASHRAE data center environment
	Relative humidity (nonoperating)	5 to 95% noncondensing
	Altitude	0 to 10,000 ft (0 to 3000m)
	Mean time between failure (MTBF)	317,030 hours

Q&A

What accessories are available for the Nexus 3548-X Switch?

Accessories include spare SFP+ modules, power supply units, and rack-mount kits specifically designed for the Nexus 3548-X Switch.

How does the Nexus 3548-X Switch compare to similar products?

The Nexus 3548-X Switch is distinguished by its ultra-low latency, making it superior for environments requiring fast and reliable network performance.

Can the Nexus 3548-X Switch be used in a cloud environment?

Yes, the Nexus 3548-X Switch is suitable for high-performance cloud environments due to its scalability and enhanced features.
