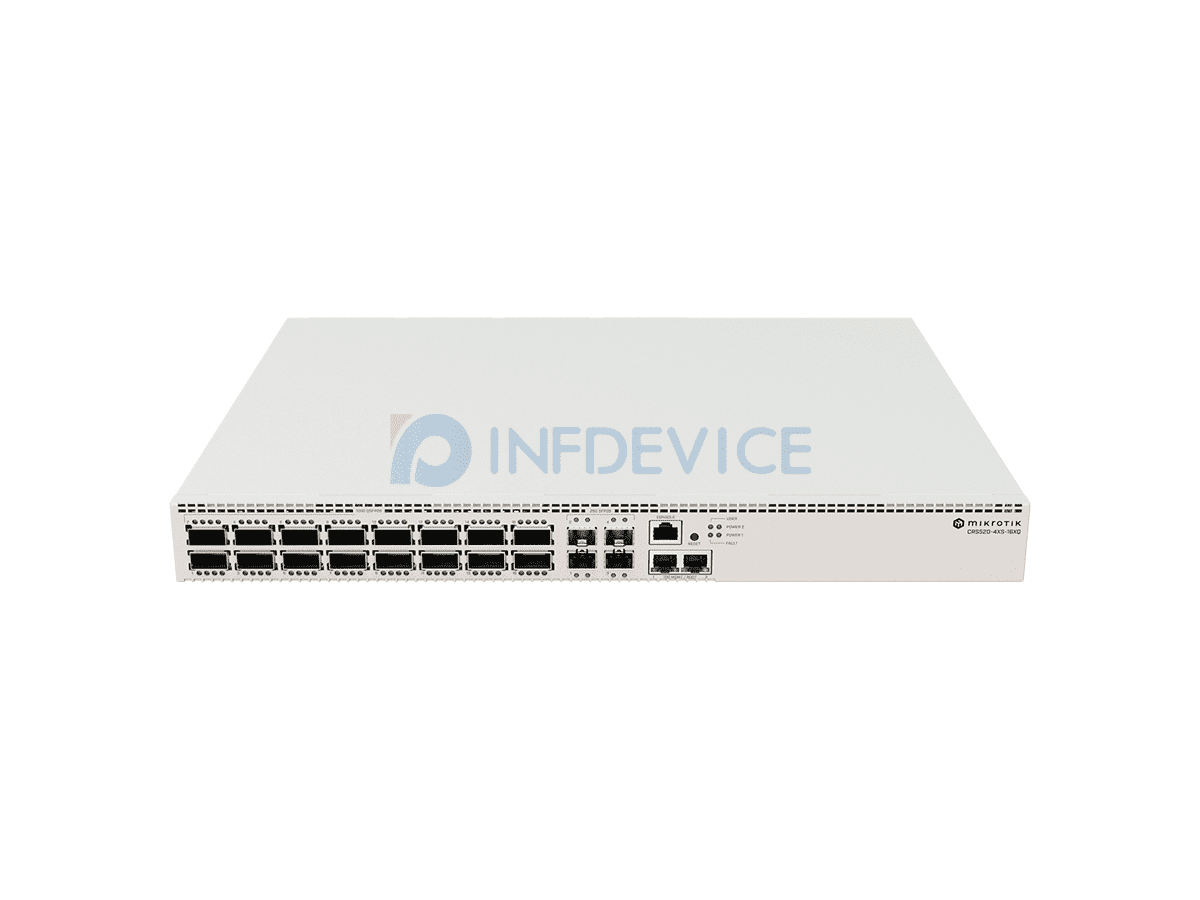

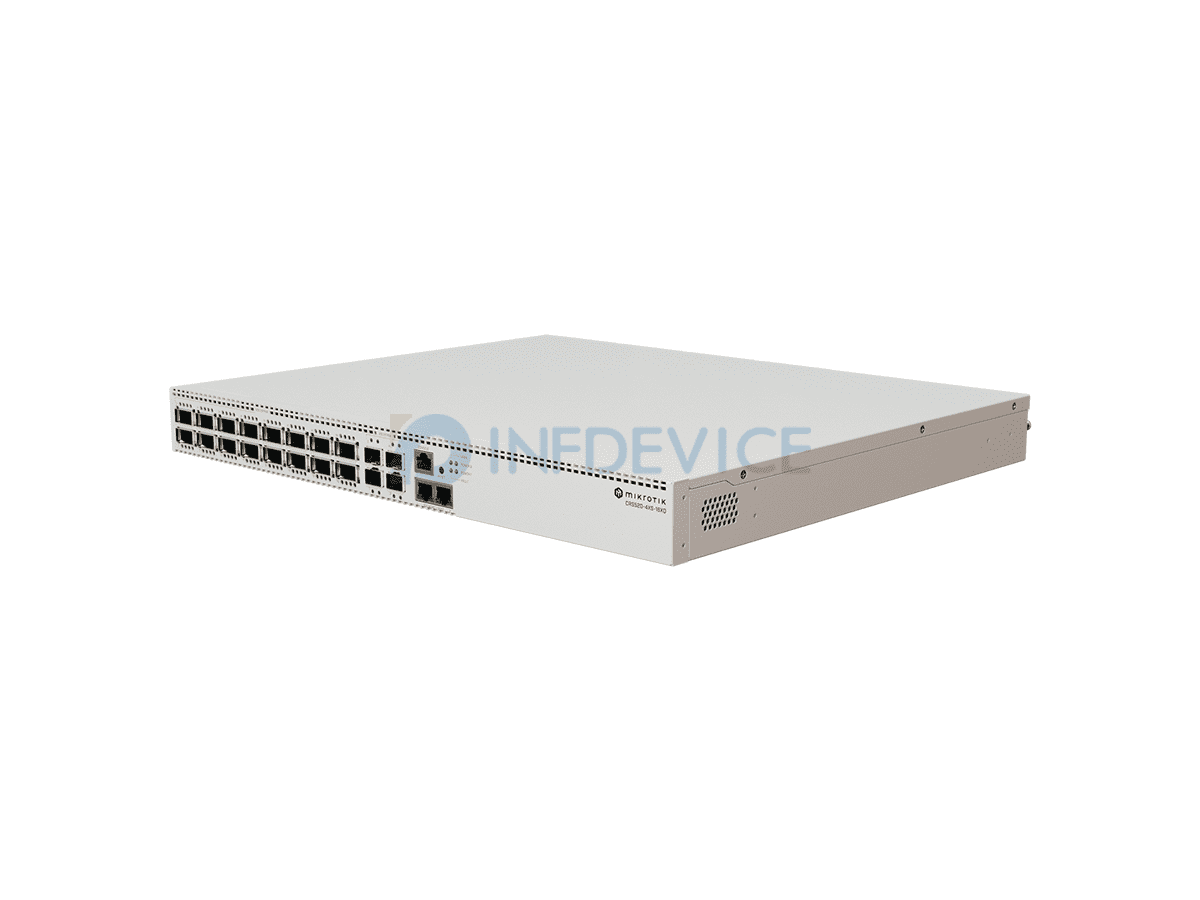

CRS520-4XS-16XQ-RM, MikroTik CRS Series Switches

CRS520-4XS-16XQ-RM, MikroTik CRS Series Switches

Name: CRS520-4XS-16XQ-RM, MikroTik CRS Series Switches
SKU: CRS520-4XS-16XQ-RM
Price: 2055.00 USD
Availability: InStock

Model:

CRS520-4XS-16XQ-RM

Detail:

Brand new An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!

List Price:

US$ 2,195.00

Price:

US$2,055.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

Specifications

Details
Product code	CRS520-4XS-16XQ-RM
Architecture	ARM 64bit
CPU	AL52400
CPU core count	4
CPU nominal frequency	2 GHz
Switch chip model	98CX8410
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 50°C
Suggested price	$2195.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max power consumption	150 W (220 W with both PSUs)
Max power consumption without attachments	123 W
Cooling type	4 fans

Ethernet

Details
Number of 1G/2.5G/5G/10G Ethernet ports	2 (supported: 10M/100M/1G/10G)

Fiber

Details
Number of 25G SFP28 ports	4
Number of 100G QSFP28 ports	16

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Compare with related models

Model	Key specification
CRS520-4XS-16XQ-RM	MikroTik CRS Series Switches
CRS105-5S-FB	MikroTik CRS Series Switches
CRS112-8G-4S-IN	MikroTik CRS Series Switches
CRS304-4XG-IN	MikroTik CRS Series Switches
CRS305-1G-4S+IN	MikroTik CRS Series Switches
CRS309-1G-8S+IN	Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps po…
CRS310-1G-5S-4S+IN	MikroTik CRS Series Switches
CRS310-8G+2S+IN	MikroTik CRS series Switches

View all 21 models in MikroTik CRS Series Switches

Q&A

What is the CRS520-4XS-16XQ-RM?

Brand new An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!

Which software or license level does the CRS520-4XS-16XQ-RM ship with?

Per the specification table, RouterOS license: 5.

How is the CRS520-4XS-16XQ-RM managed?

Per the specification table, Serial console port: RJ45.
