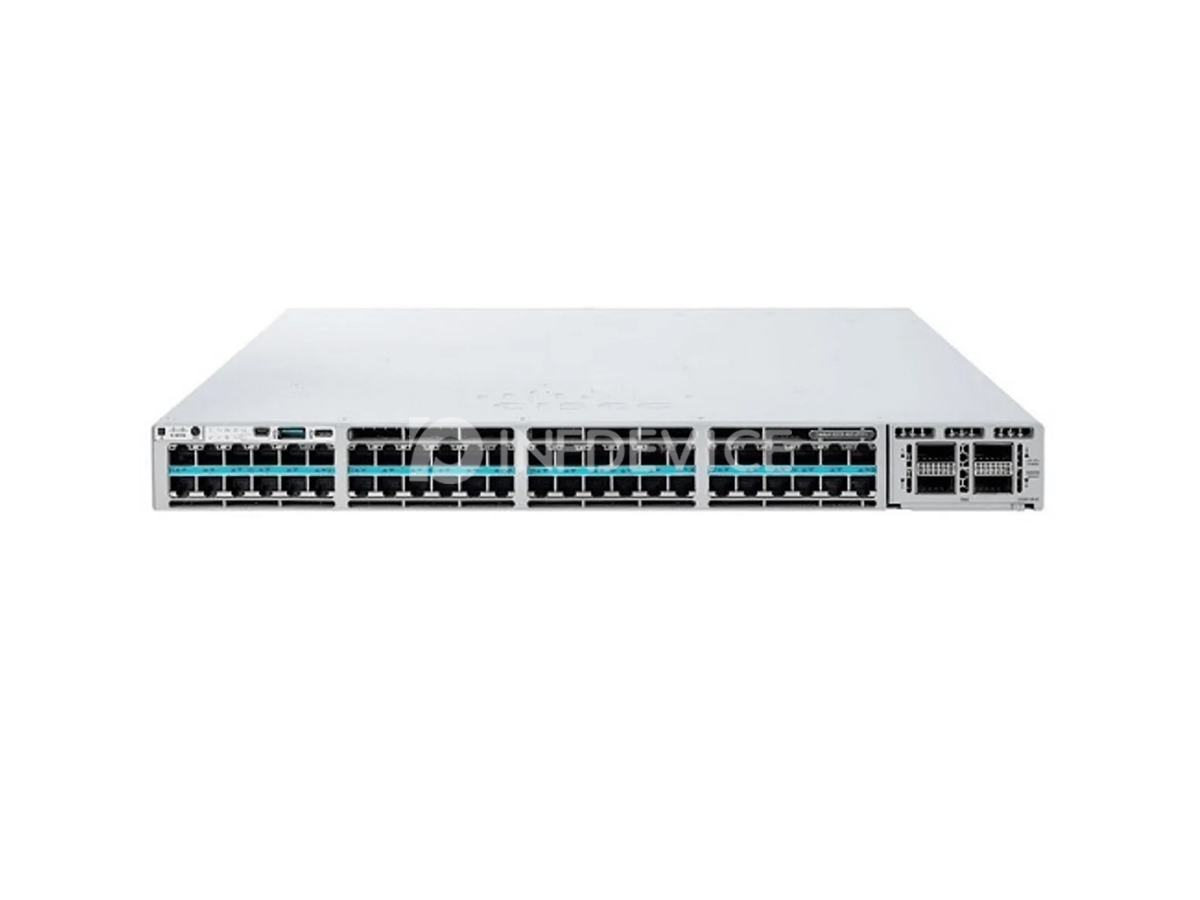

C9300X-48TX-A, Cisco Catalyst 9300X Switch, 48x10G mGig/Data Only/Network Advantage/StackWise-1T

Model:

C9300X-48TX-A

Detail:

Cisco Catalyst 9300X 48-port 10G mGig data-only switch, 2000 Gbps capacity, Network Advantage license.

List Price:

US$ 15,995.00

Price:

US$3,690.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

10G 48-Port mGig

Add to Cart

Specification

Product Features Comparison

Parameter	Cisco C9300X-48TX-A	Cisco C9300X-48TX-E
Product Series	Cisco Catalyst 9300X (10G mGig)	Cisco Catalyst 9300X (10G mGig)
Downlink Ports	48 x 10G mGig (10G/5G/2.5G/1G/100M), data only	48 x 10G mGig (10G/5G/2.5G/1G/100M), data only
Software Tier	Network Advantage ("A")	Network Essentials ("E")
Switching Capacity	2000 Gbps	2000 Gbps
Forwarding Rate	1488 Mpps	1488 Mpps
Stacking	StackWise-1T	StackWise-1T

C9300X-48TX-A Specification

Parameter Category	Specification
Product Type	Enterprise access switch, 10G multigigabit, modular uplink
Downlink Ports	48 x 10G mGig (10G/5G/2.5G/1G/100M), data only (no PoE)
Uplink Configuration	One 9300X network module slot: C9300X-NM-8M, C9300X-NM-8Y or C9300X-NM-4C (4x100G/40G, supported on this model)
Switching Capacity	2000 Gbps (3000 Gbps when stacked)
Forwarding Rate	1488 Mpps
Stacking	StackWise-1T with other 9300X models
Software	Cisco IOS XE, Network Advantage
Best For	High-density 10G copper access for servers, storage and high-end users

Q&A

Is the C9300X-48TX-A stackable?

Yes. The C9300X-48TX-A stacks with other Catalyst 9300X models using StackWise-1T (1 Tbps), with support for up to 8 members.

Does the C9300X-48TX-A support PoE?

No. The 48TX variant is data-only - all 48 mGig ports (10G/5G/2.5G/1G/100M) carry data without PoE. For PoE choose the C9300X-48HX (UPOE+) model instead.

What uplink options does the C9300X-48TX-A have?

It uses 9300X-specific network modules: C9300X-NM-8M (8x mGig), C9300X-NM-8Y (8x25G), C9300X-NM-2C (2x100G) or C9300X-NM-4C (4x100G/40G, supported on the 48TX).
