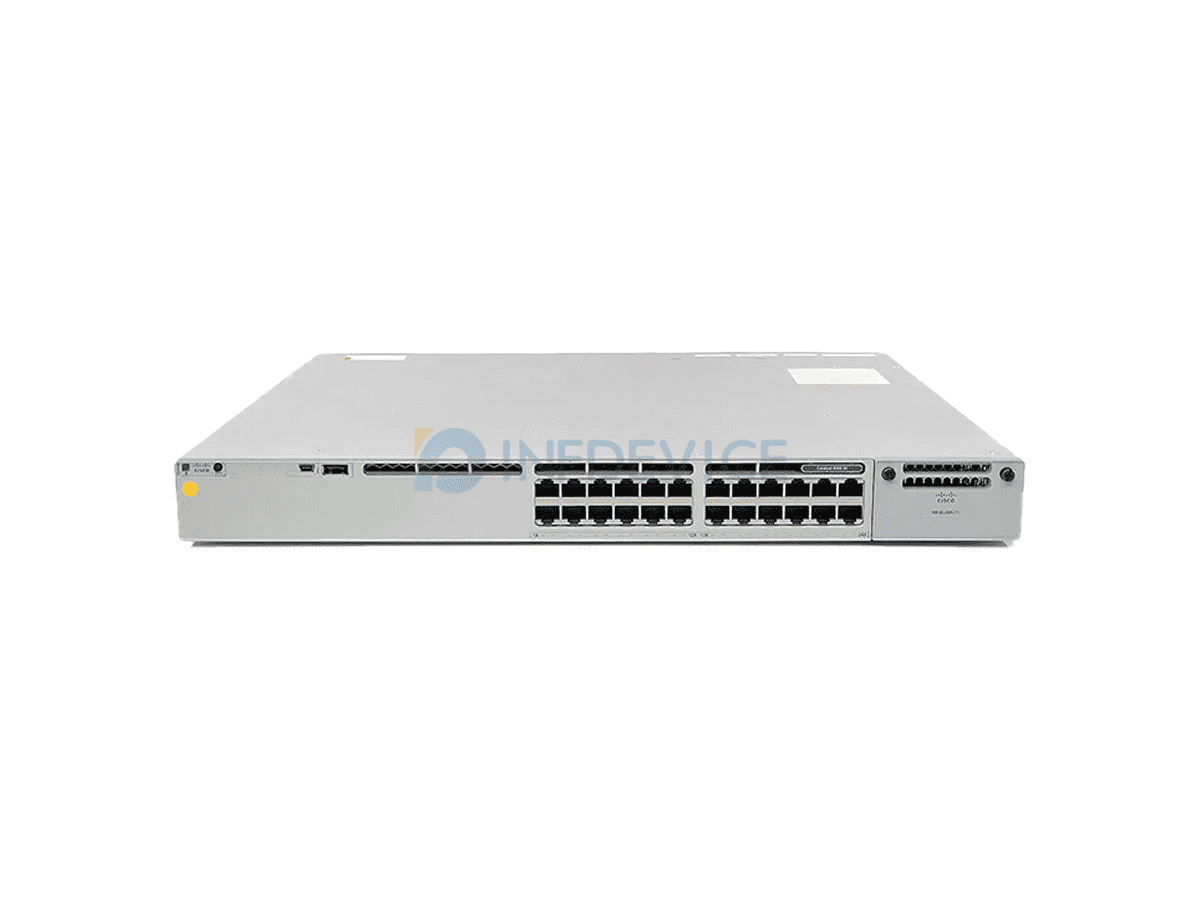

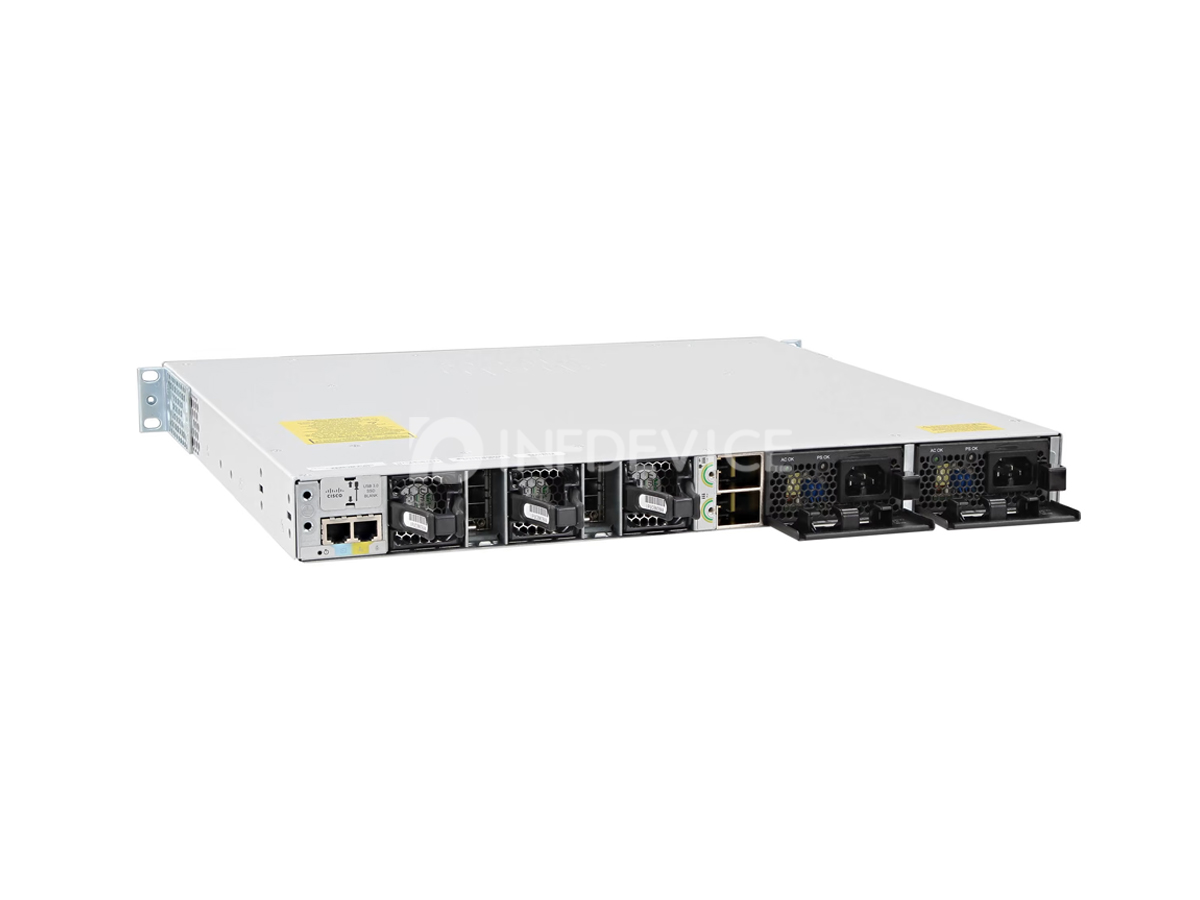

C9300-24T-A, Cisco Catalyst 9300 Switch, 24xGE/Modular Uplink/Network Advantage/StackWise-480

C9300-24T-A, Cisco Catalyst 9300 Switch, 24xGE/Modular Uplink/Network Advantage/StackWise-480

Model:

C9300-24T-A - Cisco Catalyst 9300 24-Port Data Switch

Detail:

Cisco Catalyst 9300 24-port Gigabit data switch with modular uplink, Network Advantage license, StackWise-480.

List Price:

US$ 5,782.50

Price:

US$2,200.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

SFP+ 24-Port

Add to Cart

Specification

Product Features Comparison

Parameter	Cisco C9300-24T-A	Cisco C9300-24T-E
Product Series	Cisco Catalyst 9300 (modular uplink)	Cisco Catalyst 9300 (modular uplink)
Downlink Ports	24 x 10/100/1000BASE-T (data only)	24 x 10/100/1000BASE-T (data only)
Software Tier	Network Advantage ("A")	Network Essentials ("E")
Switching Capacity	208 Gbps	208 Gbps
Forwarding Rate	154.76 Mpps	154.76 Mpps
Stacking	StackWise-480 (480 Gbps)	StackWise-480 (480 Gbps)

C9300-24T-A Specification

Parameter Category	Specification
Product Type	Enterprise access switch, modular uplink
Downlink Ports	24 x 10/100/1000BASE-T (data only, no PoE)
Uplink Configuration	One network module slot: C9300-NM-4G (4x1G), C9300-NM-4M (4x mGig), C9300-NM-8X (8x10G), C9300-NM-2Y (2x25G) or C9300-NM-2Q (2x40G)
Switching Capacity	208 Gbps (688 Gbps when stacked)
Forwarding Rate	154.76 Mpps (511.90 Mpps when stacked)
Stacking	StackWise-480, 480 Gbps, up to 8 members
Software	Cisco IOS XE, Network Advantage
Best For	Non-PoE user access at branch and campus edges needing Advantage features

Q&A

Is the C9300-24T-A stackable?

Yes. The C9300-24T-A supports Cisco StackWise-480 stacking (480 Gbps) with up to 8 members using StackWise stacking cables (STACK-T1 series).

What uplink options does the C9300-24T-A have?

It has one network module slot supporting C9300-NM-4G (4x1G), C9300-NM-4M (4x mGig), C9300-NM-8X (8x10G), C9300-NM-2Y (2x25G) or C9300-NM-2Q (2x40G) modules. The module is ordered separately.

What software license does the C9300-24T-A include?

The C9300-24T-A ships with Cisco Network Advantage (the A suffix), which adds advanced routing, SD-Access fabric edge and richer security features over Essentials.
