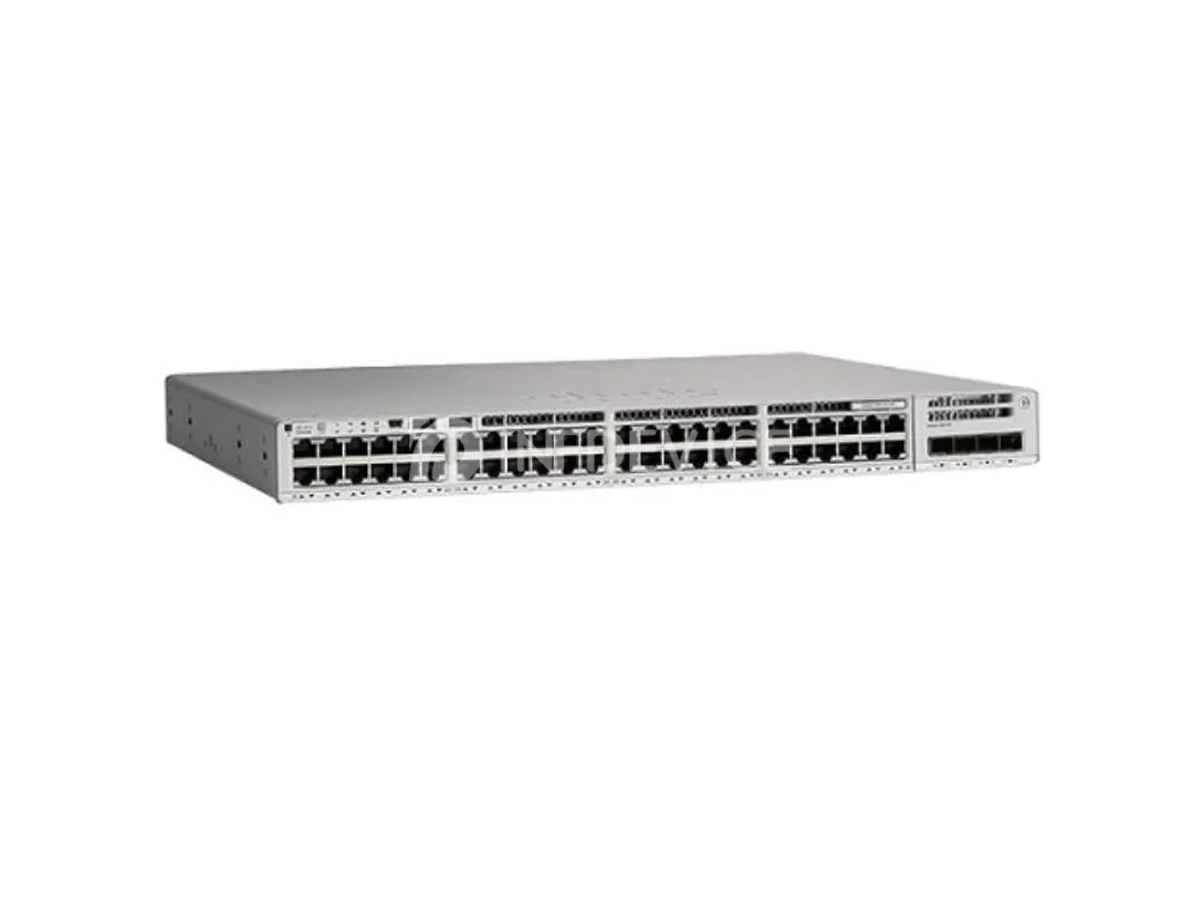

C9200-48PXG, Cisco Catalyst 9200 Switch, 8xmGig+40x1G PoE+/StackWise-160

Model:

C9200-48PXG

Detail:

Cisco Catalyst 9200 48-port mGig PoE+ switch: 8 x mGig (up to 10G) + 40 x 1G downlinks, 400 Gbps switching capacity.

List Price:

US$ 13,995.00

Price:

US$4,280.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

48-Port PoE+ mGig

Add to Cart

Specification

Product Features Comparison

Parameter	Cisco C9200-48PXG	Cisco C9200-24PXG-A
Product Series	Cisco Catalyst 9200 (modular uplink)	Cisco Catalyst 9200 (modular uplink)
Downlink Ports	48 (8 x mGig up to 10G + 40 x 1G) PoE+	24 (8 x mGig up to 10G + 16 x 1G) PoE+
Switching Capacity	400 Gbps	352 Gbps
Forwarding Rate	297.61 Mpps	261.90 Mpps
PoE Budget	740W (1440W with second PSU)	370W (740W with second PSU)
Stacking	StackWise-160 (160 Gbps)	StackWise-160 (160 Gbps)

C9200-48PXG Specification

Parameter Category	Specification
Product Type	Enterprise access switch, modular uplink
Downlink Ports	48 ports: 8 x mGig (100M/1G/2.5G/5G/10G) + 40 x 10/100/1000BASE-T, all PoE+
PoE Budget	740W with default 1KWAC PSU (1440W with second PSU)
Uplink Configuration	One network module slot: C9200-NM-4X (4x1/10G) standard; C9200-NM-2Y (2x25G) or C9200-NM-2Q (2x40G) supported on this model
Switching Capacity	400 Gbps
Forwarding Rate	297.61 Mpps
Stacking	StackWise-160, 160 Gbps, up to 8 members (C9200-STACK-KIT= cables)
Software	Cisco IOS XE; Network Essentials or Advantage (order by suffix)
Best For	High-density Wi-Fi 6/6E access point deployments

Q&A

Is the C9200-48PXG stackable?

Yes. The C9200-48PXG supports Cisco StackWise-160 stacking (160 Gbps) with up to 8 members. Order the C9200-STACK-KIT= stacking cables. Only Catalyst 9200 switches can stack together.

What PoE budget does the C9200-48PXG provide?

The C9200-48PXG provides a PoE budget of 740W with the default 1KWAC power supply, or 1440W with a second power supply. Its 8 mGig ports (up to 10G) are ideal for Wi-Fi 6/6E access points.

What uplink options does the C9200-48PXG have?

It has one network module slot. The C9200-NM-4X (4x1/10G SFP+) is standard, and this PXG model also supports the C9200-NM-2Y (2x25G) or C9200-NM-2Q (2x40G) modules.
