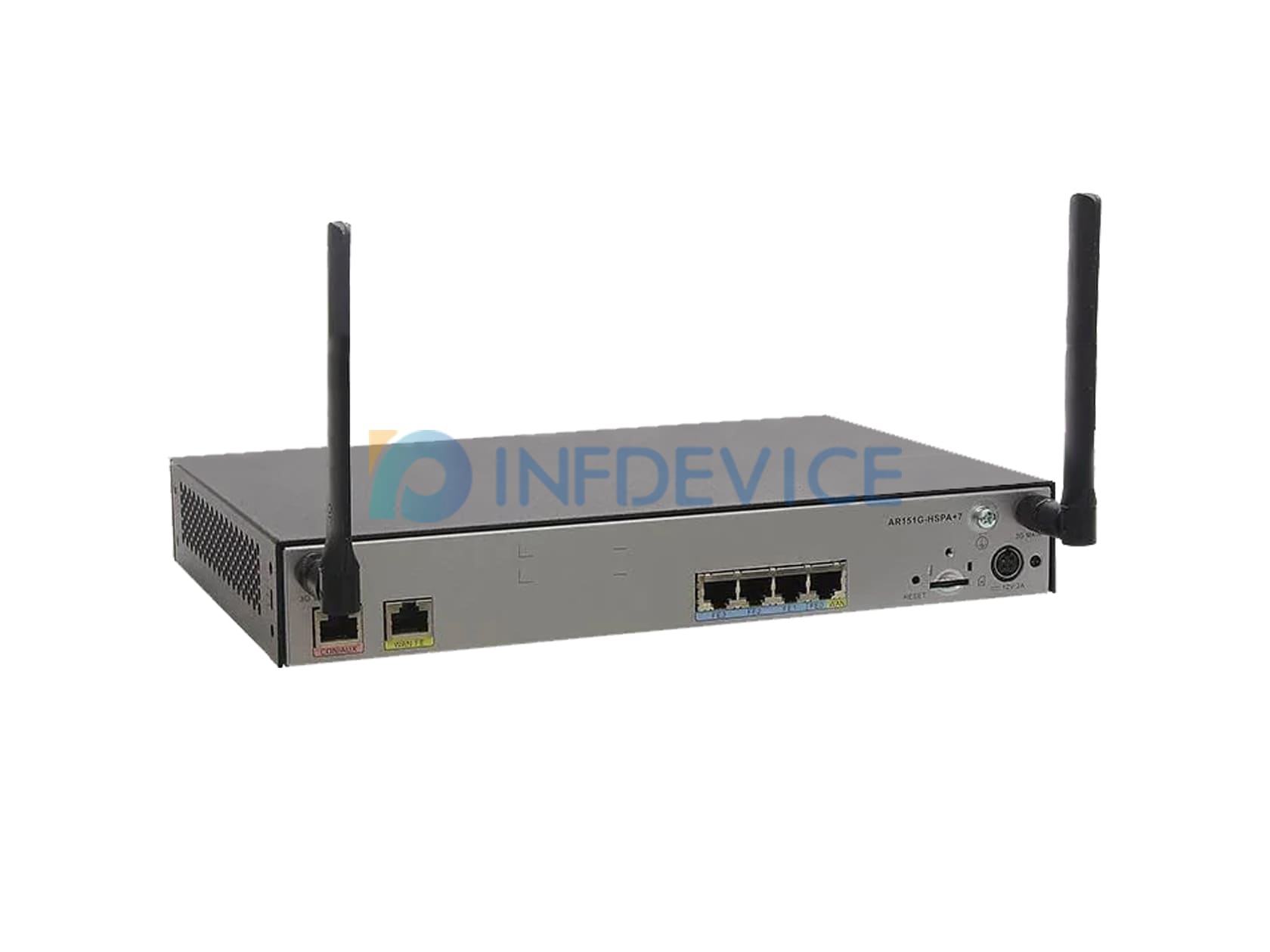

AR151G-HSPA+7

AR151G-HSPA+7 Specification

WAN speed with services (IMIX)

150 Mbit/s or 100 Mbit/s

Number of recommended users

50

Fixed WAN Ports

1 x ADSL2+ Annex A/M

Fixed Ethernet Switching Ports

8 x FE/4 x FE (can be configured as WAN interfaces)

Fixed Voice Ports

-

Integrated 3G

WCDMA HSPA+7

USB 2.0 Ports

1

Console Ports

1

Memory Size

512 MB

Flash Memory

512 MB

PoE Power

-

Maximum Power

36W/24W

Power Supply (AC)

100V to 240V

Frequency

50 Hz/60 Hz

Dimensions (H x W x D)

44.5 mm x 300 mm x 220 mm
(1.7 in. x 11.8 in. x 8.66 in.)

Operating Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non- condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP v1/v2/v3, PIM SM, PIM DM, and MSDP

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN

QoS

DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI

Management and Maintenance

Upgrade management, device management, web-based GUI, GTL, SNMP v1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI
