A9K-RSP5-TR

Model:

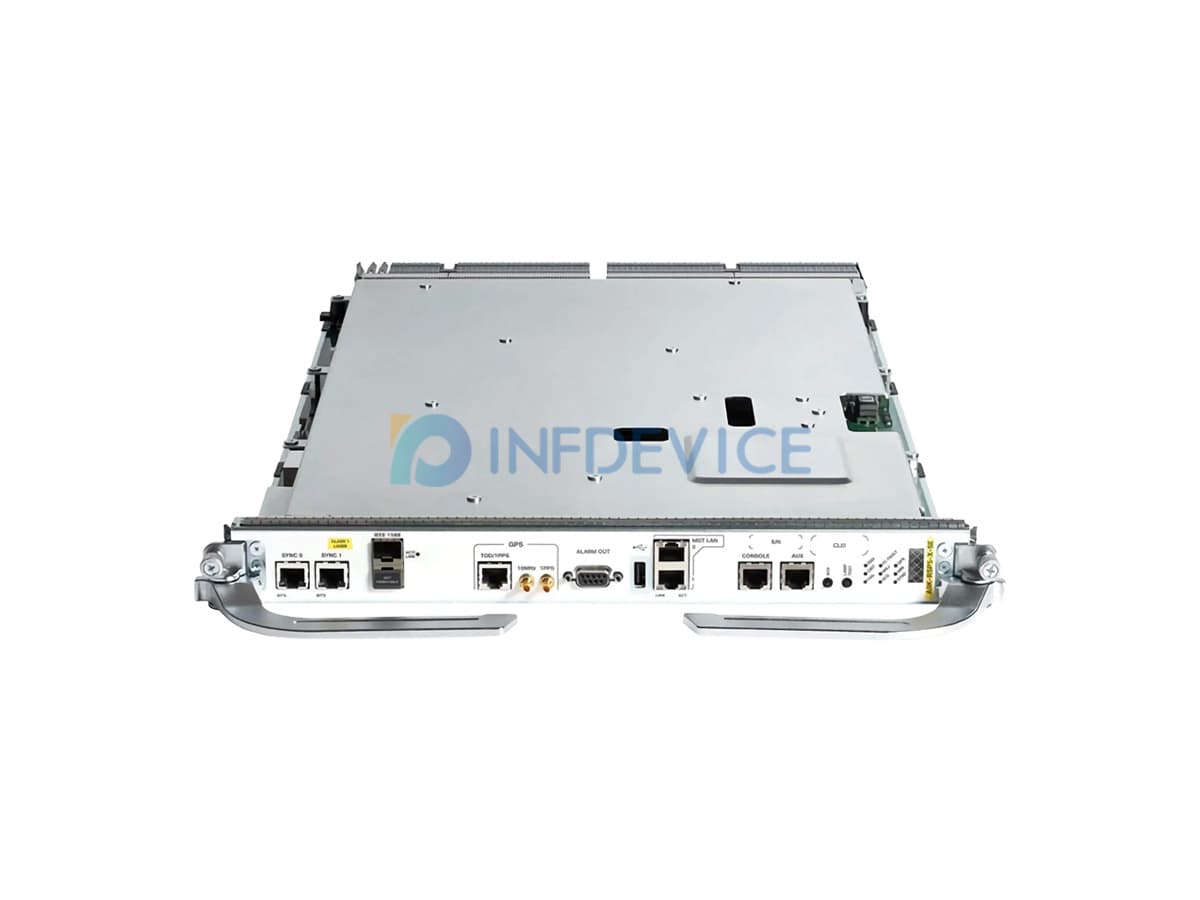

A9K-RSP5-TR - Cisco ASR 9000 Series Moudle

Detail:

ASR 9000 Route Switch Processor 5 for Packet Transport Spare

List Price:

US$ 93,574.85

Price:

US$39,850.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

A9K Supervisor

Add to Cart

Specification

A9K-RSP5-TR, Cisco ASR 9000 Series Router, 400G throughput/2x100GE/Redundant support Specification

A9K-RSP5-TR Specifications
Part numbers of supported line cards	5th Generation ● A99-4T-FC ● A99-10X400GE-X-SE ● A99-10X400GE-X-TR ● A99-32HG-FC ● A99-32X100GE-X-SE ● A99-32X100GE-X-TR ● A9K-20HG-FLEX-FC ● A9K-20HG-FLEX-SE ● A9K-20HG-FLEX-TR ● A9K-8HG-FLEX-FC ● A9K-8HG-FLEX-SE ● A9K-8HG-FLEX-TR ● A99-4HG-FLEX-FC ● A99-4HG-FLEX-SE ● A99-4HG-FLEX-TR ● A9K-4HG-FLEX-FC ● A9K-4HG-FLEX-SE ● A9K-4HG-FLEX-TR 4th Generation ● A99-32X100GE-FC ● A99-32X100GE-TR ● A99-32X100GE-CM ● A9K-16X100GE-FC ● A9K-16X100GE-TR ● A9K-16X100GE-CM ● A99-16X100GE-X-FC ● A99-16X100GE-X-SE	3rd Generation ● A99-12X100GE-FC ● A99-12X100GE ● A99-12X100GE-CM ● A99-8X100GE-FC ● A99-8X100GE-SE ● A99-8X100GE-TR ● A99-8X100GE-CM ● A9K-8X100GE-FC ● A9K-8X100GE-SE ● A9K-8X100GE-TR ● A9K-8X100GE-CM ● A9K-8X100G-LB-SE ● A9K-8X100G-LB-TR ● A9K-4X100GE-FC ● A9K-4X100GE-SE ● A9K-4X100GE-TR ● A9K-400GE-LAN-FC ● A9K-4X100GE ● A99-48X10GE-1G-FC ● A99-48X10GE-1G-TR ● A99-48X10GE-1G-SE ● A9K-48X10GE-1G-FC ● A9K-48X10GE-1G-TR ● A9K-48X10GE-1G-SE ● A9K-48X10GE-1G-CM ● A9K-24X10GE-1G-FC ● A9K-24X10GE-1G-TR ● A9K-24X10GE-1G-SE ● A9K-24X10GE-1G-CM ● A9K-MOD400-FC ● A9K-MOD400-SE ● A9K-MOD400-TR ● A9K-MOD400-CM ● A9K-MOD200-FC ● A9K-MOD200-SE ● A9K-MOD200-TR ● A9K-400G-DWDM-TR
Redundancy	● No single point of failure ● 1 + 1 route switch processor redundancy (both route switch processors must be of the same kind) ● Software redundancy
Physical specifications (includes ejector bracket/lever)	Each route switch processor occupies 1 slot; a redundant route switch processor configuration occupies 2 slots. ● Height: 1.63 in. (4.10 cm) ● Width: 15.86 in. (40.28 cm) ● Depth: 24.62 in. (62.53 cm) ● Weight: 20.39 lb (9.25 kg)
Environmental Specifications
Operating temperature (nominal)	32 to 104°F (0 to 40°C)
Operating temperature (short-term)	23 to 131°F (-5 to 55°C) Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).
Operating humidity (nominal) (relative humidity)	5 to 90%
Storage temperature	-40 to 158°F (-40 to 70°C)
Storage (relative humidity)	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Compliance
Network Equipment Building Standards (NEBS)	The ASR 9000 Series is designed to meet these standards: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS Electromagnetic Compatibility (EMC) and Safety ● GR-63-CORE: NEBS Physical Protection ● VZ.TPR.9205: Verizon TEEER
ETSI standards	The ASR 9000 Series is designed to meet these standards: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards emission	The ASR 9000 Series is designed to meet these standards: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker ● EN 50121-4: Railway EMC
EMC standards immunity	The ASR 9000 Series is designed to meet these standards: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ● EN 50121-4: Railway EMC
Safety	The ASR 9000 Series is designed to meet these standards: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety

Q&A

What accessories are available for the A9K-RSP5-TR?

Accessories for the A9K-RSP5-TR include power supplies, line cards, and optics compatible with the ASR 9000 series.

How does the A9K-RSP5-TR compare to other Cisco ASR 9000 models?

The A9K-RSP5-TR offers higher performance and better scalability compared to previous ASR 9000 models, such as the A9K-RSP440.

Can the A9K-RSP5-TR be used in multi-tenant environments?

Yes, the A9K-RSP5-TR supports multi-tenant capabilities, making it suitable for environments with multiple customers or services.
