A9K-48X10GE-1G-TR

Model:

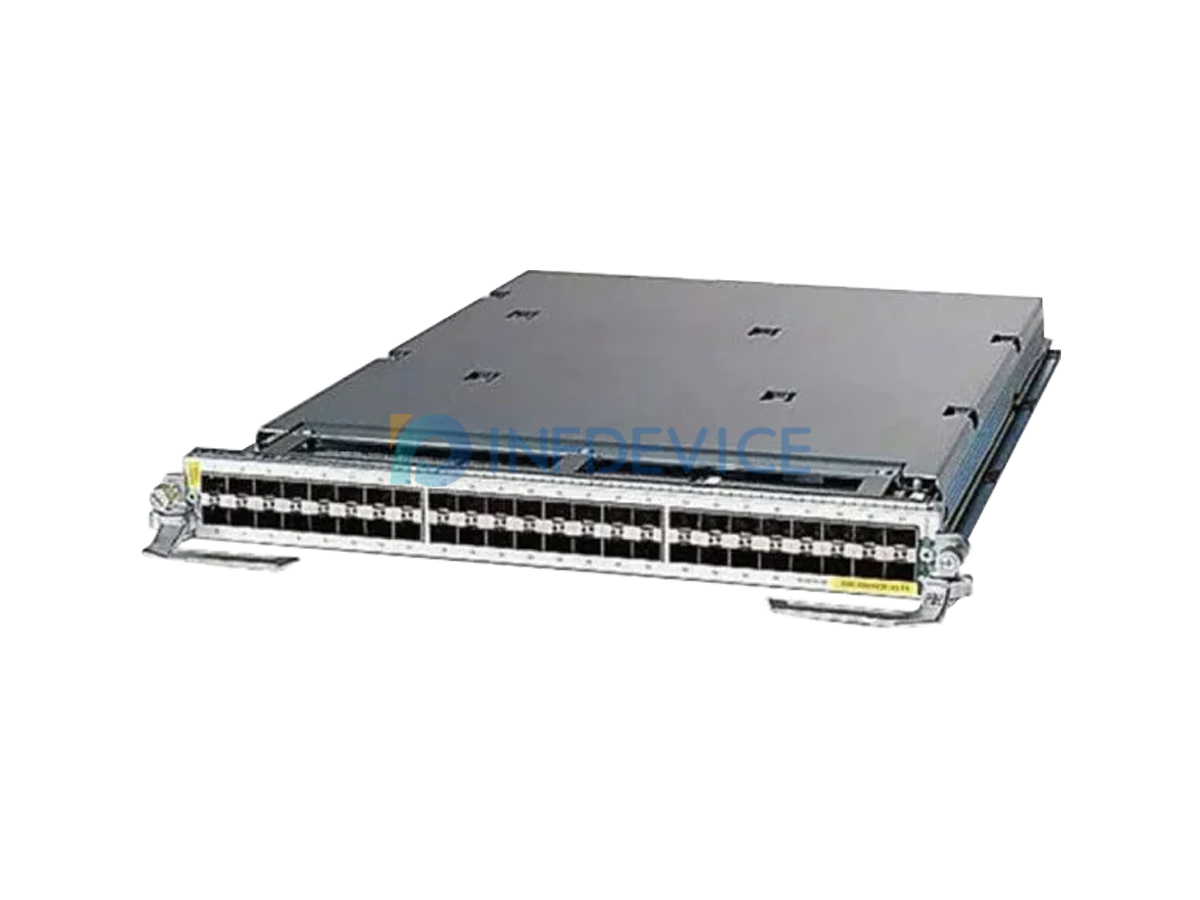

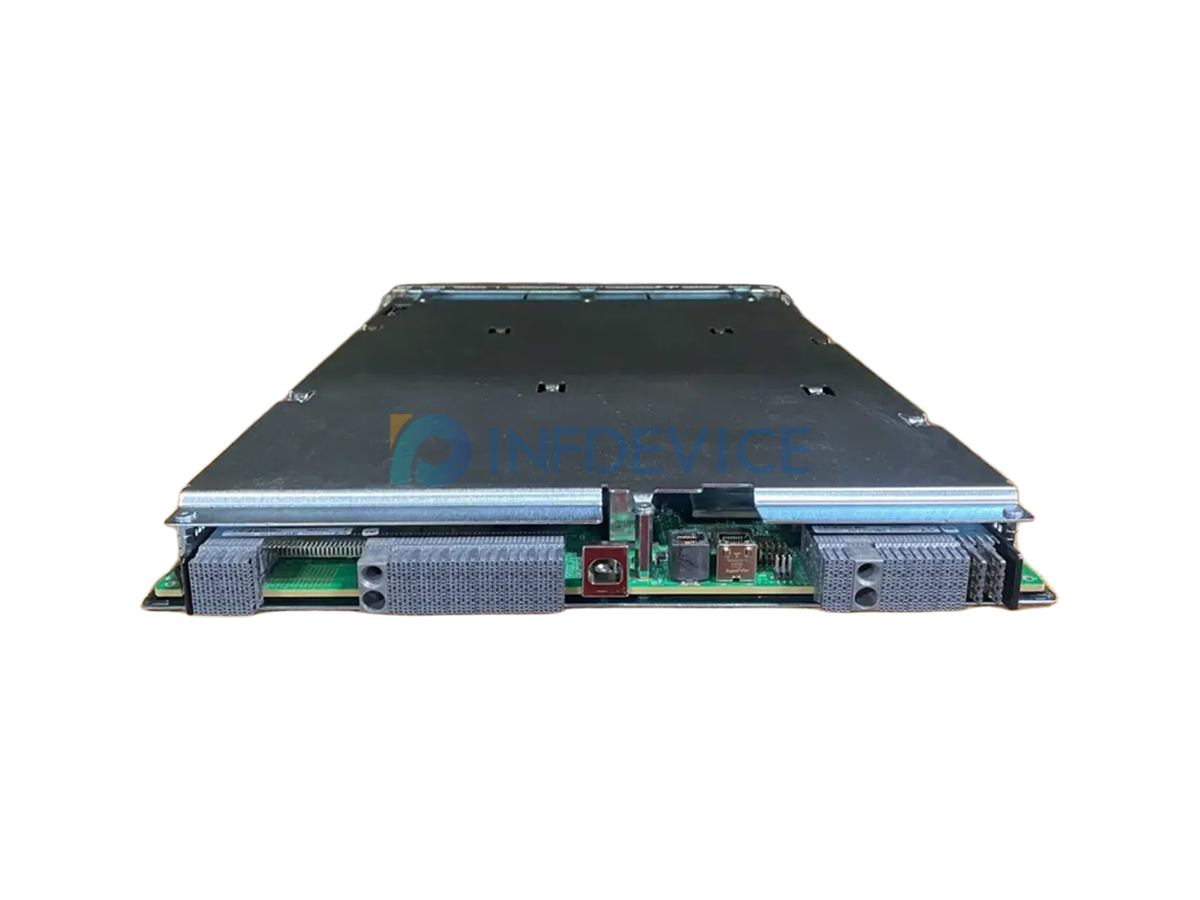

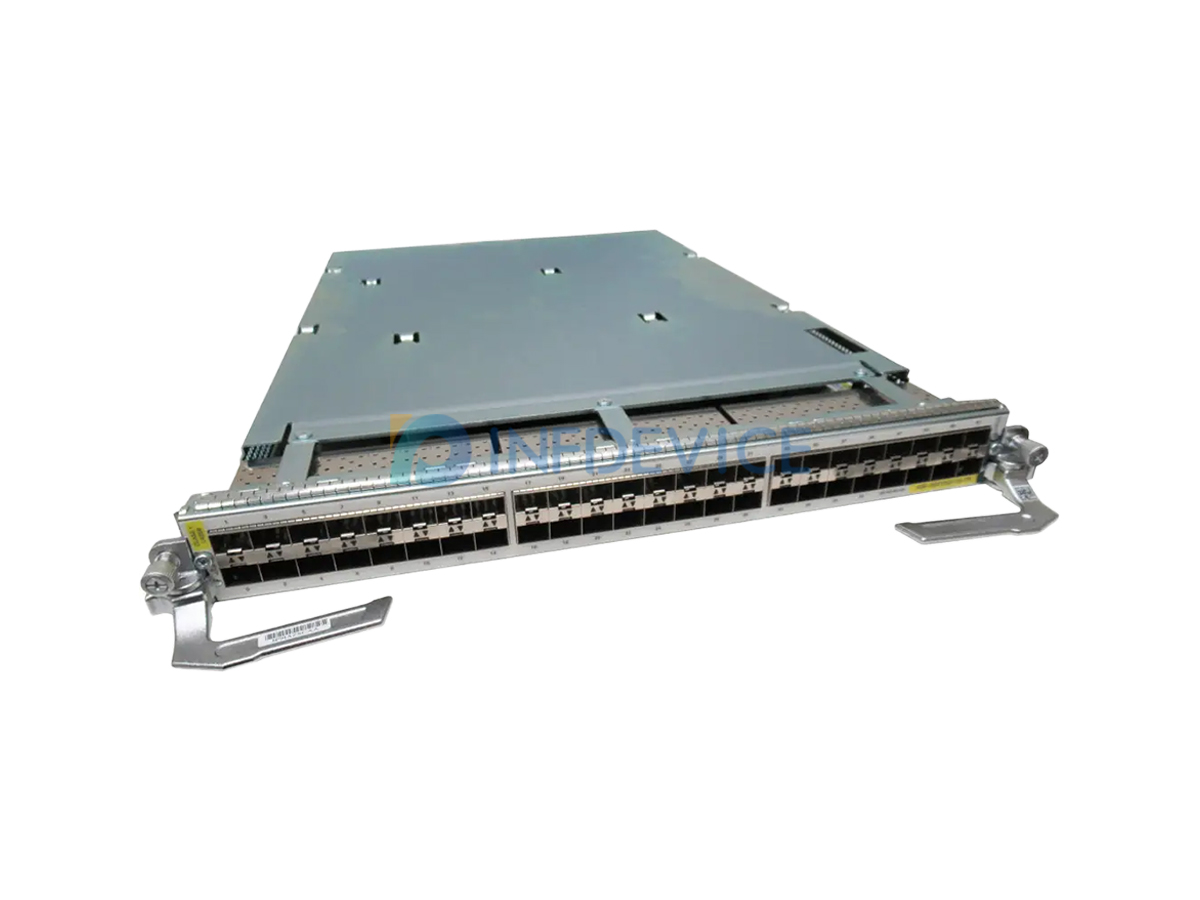

A9K-48X10GE-1G-TR - Cisco ASR 9000 line card

Detail:

A9K-48X10GE-1G-TR, Cisco ASR 9000 Router, 48x10GE/1GE ports, Dual Rate, -TR LC

List Price:

US$ 178,000.00

Price:

US$106,500.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

48-Port 400G

Add to Cart

Specification

Cisco A9K-48X10GE-1G-TR Specification

A9K-48X10GE-1G-TR Specifications
Chassis compatibility	Compatible with the Cisco ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904, ASR 9010 and ASR 9006 chassis. ● A99-48X10GE-1G-FC, A99-48X10GE-1G-SE, A99-48X10GE-1G-TR PIDs – compatible with the ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904 chassis ● A9K-48X10GE-1G-FC, A9K-48X10GE-1G-SE, A9K-48X10GE-1G-TR, A9K-24X10GE-1G-FC, A9K-24X10GE-1G-SE, A9K-24X10GE-1G-TR PIDs – compatible with the ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904, ASR 9010, ASR 9006 chassis
Port density	24 ports and 48 ports of 10 Gigabit/1 Gigabit Ethernet ports per line card
Ethernet	● 10-Gbps IEEE 802.3ba compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Performance	● 24-port dual-rate 10GE/1GE line card: 200-Gbps line-rate throughput, 240:200 oversubscription ● 48-port dual-rate 10GE/1GE line card: 400-Gbps line-rate throughput, 480:400 oversubscription
Options	Each line card is available as either a service edge–optimized (enhanced QoS) or packet transport–optimized (basic QoS) line card
Reliability and availability	Line-card Online Insertion and Removal (OIR) support without system effects
Physical dimensions (H x W x D); weight	24-port 10 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 18.3 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 8.3 kg) 48-port 10 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 20 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 9.1 kg)
Operating temperature	41 to 104°F (5 to 40°C)
Operating humidity (nominal) (relative humidity)	10 to 85%
Storage temperature	–40 to 158°F (–40 to 70°C)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude	–60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards	Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity	Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety	Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety

Q&A

What are the common troubleshooting steps for the A9K-48X10GE-1G-TR?

Common troubleshooting includes checking cable connections, verifying configuration settings, and ensuring compatibility with other network components.

What accessories are available for the A9K-48X10GE-1G-TR?

Accessories for the A9K-48X10GE-1G-TR may include compatible transceivers, power supplies, and cables to support various network configurations and requirements.

How does the A9K-48X10GE-1G-TR compare to similar products?

Compared to similar products, the A9K-48X10GE-1G-TR stands out with its dual-rate support, higher port density, and Cisco's renowned quality and reliability standards.
